Mahle

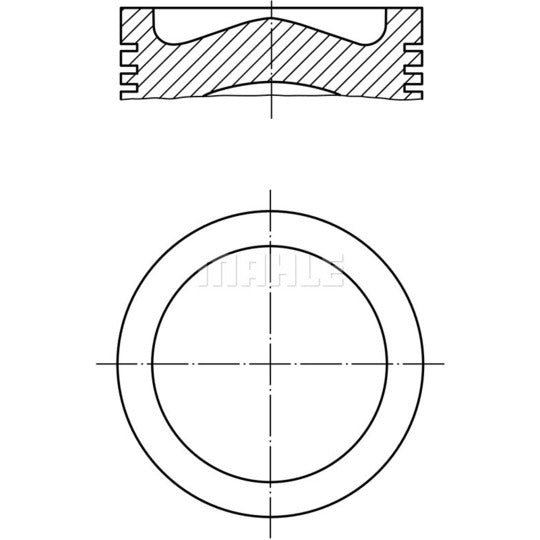

039 PI 00125 000 Piston
SKU / part number
Mahle 039 PI 00125 000 Piston. Part no. 039-PI-00125-000. Check specifications, vehicle fitment and references below.
Specifications
Length
65.4 | mm
Cylinder Bore
73.7 mm
Compression Height
42.95 mm
Bolt Length
60 mm
Bolt Head Diameter
25 mm
Recess Depth 1
12.4 mm
Recess Diameter
45 mm
Machined
with cut-out for oil jet
Surface
Coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
without cooling duct
Top Land Height
7.3 mm
Connecting Rod Design
Trapezoidal Connecting Rod
Production Number
73 L 69
Piston Clearance
0.06 mm
Component Number
1. T 2.5 CrK
Component Number
2. M 1.95 IFU
Component Number
3. DSF 2.00 Cr
Packaging height
12.80 cm
Net Weight
586 g
Packaging length
9.5 cm
Packaging width
9.50 cm
Shipping details
Weight
0.68 Kg
Customs Code
840999
Country of Origin
Turkey
OE Numbers
| CITROËN | 00000628W2, 0628W2 |
|---|---|
| PEUGEOT | 00000628W2, 0628 W2 |
Cross-Reference Numbers
| CITROËN | 00000628W2, 0628W2 |
|---|---|
| KOLBENSCHMIDT | 40 400 600 |
| NÜRAL | 87 72771, 87 838400 02 |
| PEUGEOT | 00000628W2, 0628 W2 |
