Mahle

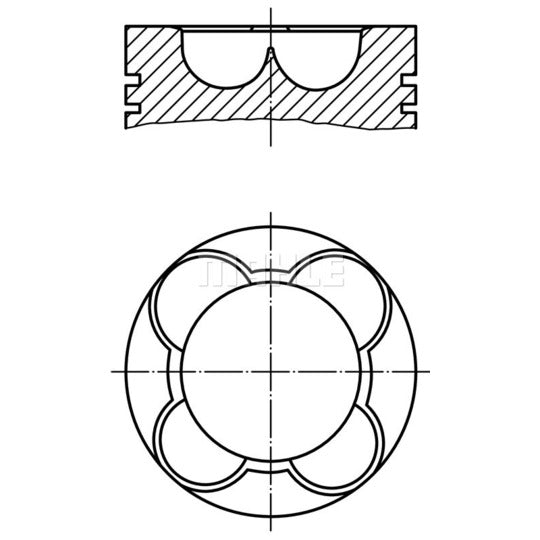

227 PI 00141 000 Piston
SKU / part number
Mahle 227 PI 00141 000 Piston. Part no. 227-PI-00141-000. Check specifications, vehicle fitment and references below.
Specifications
Length
121.8 | mm
Cylinder Bore
126.0 mm
Compression Height
76.3 mm
Bolt Length
103 mm
Bolt Head Diameter
52 mm
Recess Depth 1
22.0 mm
Recess Diameter
98 mm
Valve Pocket Depth 1
2.0 mm
Valve Pocket Depth 2
2.0 mm
Machined
with cut-out for oil jet
Surface
Coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
with cooling duct
Production Number
126 L 14
Piston Clearance
0.120 mm
Component Number
1. T3.50 IF PVD
Component Number
2. M2.50 IFU N
Component Number
3. DSF 3.50 N
Packaging length
13.2 cm
Packaging width
13.20 cm
Packaging height
19.00 cm
Net Weight
3613 g
Shipping details
Weight
3.009 Kg
Customs Code
840999
Country of Origin
Germany
OE Numbers
| MAN | 51 02500 6285, 51 02500 6337, 51 02500 6408, 51 02511 0858 |
|---|
Cross-Reference Numbers
| KOLBENSCHMIDT | 41 025 600 |
|---|---|
| MAN | 51 02500 6285, 51 02500 6337, 51 02500 6408, 51 02511 0858 |
