Mahle

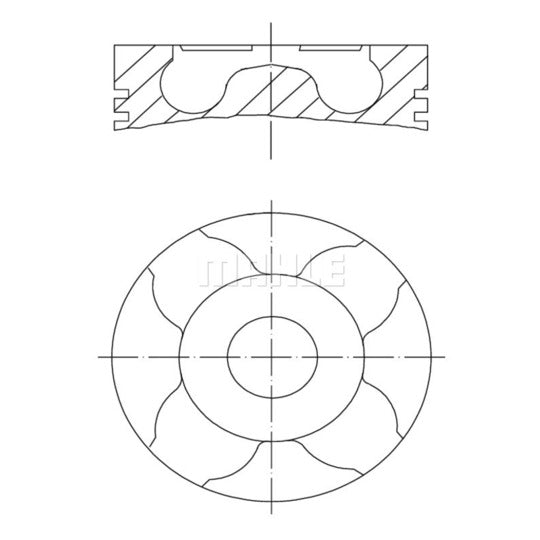

229 14 00 Piston
SKU / part number
Mahle 229 14 00 Piston. Part no. 229-14-00. Check specifications, vehicle fitment and references below.
Specifications
Length
134.3 | mm
Cylinder Bore
128.0 mm
Compression Height
79.25 mm
Bolt Length
103.0 mm
Bolt Head Diameter
52.0 mm
Recess Depth 1
23.7 mm
Recess Diameter
76.1 mm
Valve Pocket Depth 1
1.9 mm
Machined
with cut-out for oil jet
Surface
Coated
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
with cooling duct
Top Land Height
16.2 mm
Connecting Rod Design
Trapezoidal Connecting Rod
Production Number
128 L 128
Piston Clearance
0.12 mm
Component Number
1. T 4.0 CrK
Component Number
2. M 3.0 Cr P
Component Number
3. DSF 4.0 Cr
Packaging length
15.0 cm
Packaging width
15.00 cm
Packaging height
21.00 cm
Net Weight
3557 g
Shipping details
Weight
3.6 Kg
Customs Code
840999
Country of Origin
Turkey
Cross-Reference Numbers
| KOLBENSCHMIDT | 99 69760 0 |
|---|---|
| MAN | 51 02500 6041, 51 02500 6070, 51 02500 6071, 51 02500 6200, 51 02500 6300, 51 02511 0535 |
| NÜRAL | 87 143800 50, 87 143800 72, 87 71584 |
