Mahle

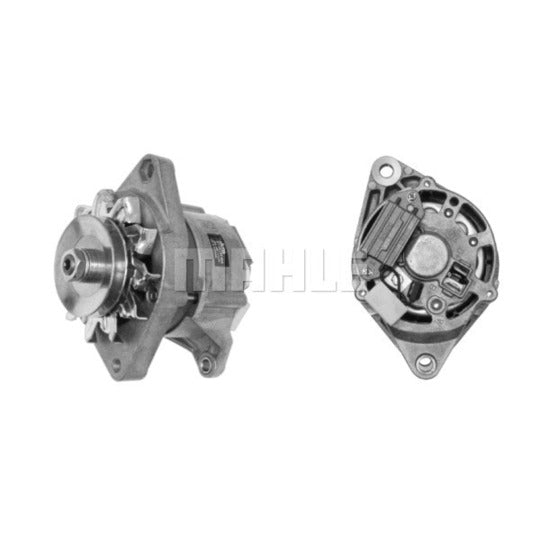

MG 123 Alternator
SKU / part number
Mahle MG 123 Alternator. Part no. MG-123. Check specifications, vehicle fitment and references below.
Specifications
Voltage
14 V
Alternator Charging Current
33 A
Pulleys
with belt pulley
Rotation Direction
Clockwise rotation
Bore Diameter
10.2 mm
Distance of mounting bores
73.0 mm
Mounting points diameter
80.0 mm
Distance from belt pulley to alternator
49.0 mm
Number of ribs
1
Belt Pulley Ø
80 mm
Mounting Angle
12 degrees
Number of belts
1
Dust Cover
with dust cover
Packaging height
15.50 cm
Packaging width
17.60 cm
Packaging length
20.8 cm
Net Weight
3660 g
Shipping details
Weight
3.926 Kg
Customs Code
851150
Country of Origin
China
OE Numbers
| AGCO | C000900010010 |
|---|---|
| CASE IH | 82847572, 9972269 |
| CLAAS | 6005706645, CT6005706645 |
| FIAT | 0004257074, 0004373601, 0004474752, 4224325, 4257074, 4275283, 4373601, 4474752, 46231680, 4998353, 51217620, 77145410, 77250410 |
Cross-Reference Numbers
| AGCO | C000900010010 |
|---|---|
| BOSCH | 0120339515, 0120339516, 0120339527, 0120339528, 0986030120, 0986030121, AL 87 X |
| CASE IH | 82847572, 9972269 |
| CLAAS | 6005706645, CT6005706645 |
| DELCO REMY | DRA0120 |
| EFEL | 10590 |
| ELECTROLOG | ALT7819, ALT79032 |
| FIAT | 0004257074, 0004373601, 0004474752, 4224325, 4257074, 4275283, 4373601, 4474752, 46231680, 4998353, 51217620, 77145410, 77250410 |
| LUCAS ELECTRICAL | LRA00199, LRA00913 |
| MAGNETI MARELLI | 306 802 74, 633 009 00, 633 009 01, 633 009 20, 633 009 21, 9433 009 20, 9433 210 06, 9433 562 74 |
| MOTOROLA | 9 AR 5006 G |
| Sparex | 35956 |
| VALEO | 432 991, 436 109, NA 284 |
