Mahle
OC 26 Oil Filter
SKU / part number

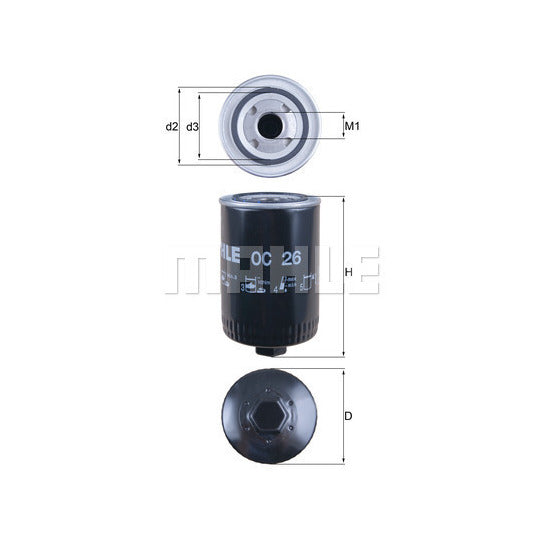

Mahle OC 26 Oil Filter. Part no. OC-26. Check specifications, vehicle fitment and references below.
Specifications
Diameter
93.2 | mm
Height
151.0 | mm
Filter type
Spin-on Filter
Thread Size
1"-12UNF-2B
Diameter 2
72.0 mm
Seal Ring Diameter
62.0 mm
Tightening Torque
20 Nm
article number of the recommended special tool
OCS 2
Supplementary Article/Supplementary Info 2
with one anti-return valve
Valve Type
Overflow Valve
Packaging height
15.30 cm
Net Weight
581 g
Packaging length
9.6 cm
Packaging width
9.60 cm
Shipping details
Weight
0.614 Kg
Customs Code
842123
Country of Origin
Germany
OE Numbers
| ATLAS COPCO | 12028495, 9709001100, 9712540103 |
|---|---|
| ATLAS WEYHAUSEN | 363031, 831038 |
| AUDI | 905411880009, T06115561 |
| BENATI | 1839105 |
| BMW | 11421318932 |
| BOMAG | 01160024, 05710639, 20608940 |
| CASE IH | 28006, 3917868R1, 711922, 8888667, 905411880009, H411272, O243252EC, S1350576 |
| CATERPILLAR | 1R0734, 5W5887, 629501461, 9N5680, 9N5860, 9Y4474 |
| CBT | 905411880009 |
| CLAAS | 05919130, 5919130, 6005000735, 6005024443, CT6005000735, CT6005024443 |
| CLARK | 3779685, 4119775 |
| CUMMINS | 851220031 |
| CUPRA | 905411880009, T06115561 |
| DAF | 690260 |
| DEMAG | 20608940 |
| DEUTZ | 01160024, 01173481, 01174418, 01182001, 0150157510, 1160024, 1173481, 1174418, 1182001, 363031, 605411880009, A1H4123, B0150157510 |
| DITCH WITCH | 195814 |
| DYNAPAC | 300480916, 747284, 747289, 752011, 752012, 752091, 925676 |
| ENASA | 637122 |
| ENGESA | 2680600298 |
| FENDT | F015200090051, F100001160024, F100001173481, F100001174418, F275203010020 |
| FENWICK | 8104270 |
| FIAT | 61584009, 75285484 |
| FORD | 1879134, 5000861, 5010666, A730X6714HA, A820X6714SA, EFL224, WD5T-6731-B, WD5T6731A |
| FUCHS | 1160024 |
| GMC | 7984325 |
| GUELDNER | 0009830627, 0160000002001, 7995000510 |
| HAMM | 231495 |
| HANOMAG | 971238001 |
| HANOMAG HENSCHEL | 000922853, 711922853, 922853, 971238001 |
| HYDROVANE | 57562 |
| INGERSOLL-RAND | 1160024, 35292358, 91605204 |
| ISUZU | 6002115212 |
| IVECO | 01160024, 01173481, 1160024, 1173481, 1902135 |
| KAELBLE | 40600493, 8600850177 |
| KOMATSU | 6002115240, 6002115241, 6002115242, 6002116140L, 6002116230, 905411880009 |
| KRAMER | 0001140201, 0451140001, 1160024, 451140001 |
| KUBOTA | 6002116230 |
| KÄLBLE | 40600493, 8600850177 |
| LIEBHERR | 5106133, 5502455, 7020038 |
| LINDE | 0009830627, 0160000002001 |
| LOSENHAUSEN | 04999/50338 |
| MANITOU | 1173481, 137183 |
| MASSEY FERGUSON | 2999976M1 |
| MAXION | 2999976M1, 905411880009 |
| MWM | 605411880009, 905411880009 |
| NEW HOLLAND | 8888667 |
| O&K | 044667 |
| POCLAIN | 243250, 243252, 8888667, 8888840, C0950546, C95044, E0243252, E243232, E243252, R0950559, R950559, S1350576 |
| PUMA | 905411880009 |
| RENAULT | 6005000735, 6005000929 |
| RENAULT TRUCKS | 5001846637 |
| RICHIER | 552352603 |
| SCHAEFF | 5080656022, 5411316400 |
| SETRA | 8300100540 |
| SLC | 905411880009 |
| STEYR | 7101070332 |
| STILL | 0133791, 133791 |
| SULLAIR | 0237, 68527266 |
| UNIC-SIMCA | 061584009 |
| VALMET | 215420, 836120822, 836122208, YT2002 |
| VM | 41150059A, 4115059, 4115065 |
| VOLVO | 11700375 |
| VW | 905411880009, T06115561 |
| VÖGELE | 4912911351 |
| WEIDEMANN | 5166001005 |
| ZETOR | 93407505 |
| ZETTELMEYER | 00405712, 0040571203, 00MU57120, 405712, 4057120, 40571203, MU57120, MU7512 |
Cross-Reference Numbers
| A.L. FILTER | AL4653 |
|---|---|
| A.P. | AP3205, AP3216A, LK1162 |
| ACDelco | 01FBO003, PF2044, X2, X4201E |
| ALCO FILTER | SP856 |
| AMC Filter | KO1545, KO1577, NO245 |
| ATLAS COPCO | 12028495, 9709001100, 9712540103 |
| ATLAS WEYHAUSEN | 363031, 831038 |
| AUDI | 905411880009, T06115561 |
| BALDWIN | BT274, BT292, BT356, BT356..BT292, BT452, BT9465 |
| BENATI | 1839105 |
| BMW | 11421318932 |
| BOMAG | 01160024, 05710639, 20608940 |
| BOSCH | 0451104004, 0451104005, 0451104066, 0986B01000, 9450732012, 9455081016 |
| CASE IH | 28006, 3917868R1, 711922, 8888667, 905411880009, H411272, O243252EC, S1350576 |
| CATERPILLAR | 1R0734, 5W5887, 629501461, 9N5680, 9N5860, 9Y4474 |
| CBT | 905411880009 |
| CHAMP | LFP18 |
| CHAMPION | A101 |
| CLAAS | 05919130, 5919130, 6005000735, 6005024443, CT6005000735, CT6005024443 |
| CLARK | 3779685, 4119775 |
| CLEAN FILTERS | D0236, DO236, DO236/D |
| COMPAIR | 98262/5137/0001 |
| COOPERS | AZL055, AZL055A, LSF5105, LSF5144, Z66 |
| CROSLAND | 322, 346, 376, 660 |
| CROSLAND FILTERS | 660 |
| CUMMINS | 851220031 |
| CUPRA | 905411880009, T06115561 |
| CoopersFiaam | FT4653 |
| DAF | 690260 |
| DELPHI | EFL861 |
| DEMAG | 20608940 |
| DEUTZ | 01160024, 01173481, 01174418, 01182001, 0150157510, 1160024, 1173481, 1174418, 1182001, 363031, 605411880009, A1H4123, B0150157510 |
| DIAMOND | FD8234 |
| DIGÖMA | DGM/O9045 |
| DITCH WITCH | 195814 |
| DONALDSON | ELF6509, ELF7680, HFP552297, LFP552819, LFP555240, P166509, P172503, P551453, P552297, P552819, P555240, P555680, P559418, P779128, P779141, P779148, P779622, P779662 |
| DONIT FILTER | 431062 |
| DYNAPAC | 300480916, 747284, 747289, 752011, 752012, 752091, 925676 |
| ENASA | 637122 |
| ENGESA | 2680600298 |
| FENDT | F015200090051, F100001160024, F100001173481, F100001174418, F275203010020 |
| FENWICK | 8104270 |
| FIAT | 61584009, 75285484 |
| FILTRON | OP647, OP647t |
| FILTROS TECFIL | PSL123 |
| FLEETGUARD | HF6080, HF6159, LF3331, LF4056, LF4087, LF681, LF708, LF760 |
| FORD | 1879134, 5000861, 5010666, A730X6714HA, A820X6714SA, EFL224, WD5T-6731-B, WD5T6731A |
| FRAD | 43.27.03/110 |
| FRAM | P1655, PH2819, PH2842, PH2877, PH3551, PH36, PH6923 |
| FUCHS | 1160024 |
| GMC | 7984325 |
| GUD FILTERS | Z66 |
| GUELDNER | 0009830627, 0160000002001, 7995000510 |
| HAMM | 231495 |
| HANOMAG | 971238001 |
| HANOMAG HENSCHEL | 000922853, 711922853, 922853, 971238001 |
| HENGST FILTER | H14W39, H170/1W, H17W04, H17W27 |
| HYDROVANE | 57562 |
| IHC | 3116609R92, 3917868R1, 711922 |
| INGERSOLL-RAND | 1160024, 35292358, 91605204 |
| ISUZU | 6002115212 |
| IVECO | 01160024, 01173481, 1160024, 1173481, 1902135 |
| KAELBLE | 40600493, 8600850177 |
| KOLBENSCHMIDT | 053OS, 50013053 |
| KOMATSU | 6002115240, 6002115241, 6002115242, 6002116140L, 6002116230, 905411880009 |
| KRAMER | 0001140201, 0451140001, 1160024, 451140001 |
| KUBOTA | 6002116230 |
| KÄLBLE | 40600493, 8600850177 |
| LIEBHERR | 5106133, 5502455, 7020038 |
| LINDE | 0009830627, 0160000002001 |
| LOSENHAUSEN | 04999/50338 |
| MANITOU | 1173481, 137183 |
| MANN-FILTER | W 9132, W719/46, W940/18, W940/5 |
| MASSEY FERGUSON | 2999976M1 |
| MAXION | 2999976M1, 905411880009 |
| MEAT & DORIA | 15010 |
| MECAFILTER | ELH4704 |
| MFILTER | MH326, MH341X, MH394 |
| MISFAT | Z110B |
| MONARK | 30758066 |
| MULLER FILTER | 69306301 |
| MWM | 605411880009, 905411880009 |
| Motorcraft | BFL31, EFL224, FH36, FL292 |
| NATO | 2940121577448 |
| NEW HOLLAND | 8888667 |
| O&K | 044667 |
| PBR | AC1354, BC1034 |
| POCLAIN | 243250, 243252, 8888667, 8888840, C0950546, C95044, E0243252, E243232, E243252, R0950559, R950559, S1350576 |
| PUMA | 905411880009 |
| PURFLUX | LS427, LS427A, LS581, LS767, LS939 |
| PUROLATOR | L37202, PC202, PC214, PC231, PER59 |
| PZL Filters | PP871 |
| QUINTON HAZELL | WL7245 |
| RACOR | RL222 |
| RENAULT | 6005000735, 6005000929 |
| RENAULT TRUCKS | 5001846637 |
| RICHIER | 552352603 |
| SCHAEFF | 5080656022, 5411316400 |
| SCT - MANNOL | SM864 |
| SETRA | 8300100540 |
| SLC | 905411880009 |
| STEYR | 7101070332 |
| STILL | 0133791, 133791 |
| SULLAIR | 0237, 68527266 |
| SogefiPro | FT3465, FT4653 |
| TECNOCAR | R67 |
| TEHO | 4050, OK50 |
| TJ FILTERS | FB2086 |
| UFI | 2311000 |
| UNIC-SIMCA | 061584009 |
| VALMET | 215420, 836120822, 836122208, YT2002 |
| VM | 41150059A, 4115059, 4115065 |
| VOLVO | 11700375 |
| VOX | LB123, LB2215 |
| VTE | 114 |
| VW | 905411880009, T06115561 |
| VÖGELE | 4912911351 |
| WEGA | WO470 |
| WEIDEMANN | 5166001005 |
| WIX FILTERS | 51283, 51453, 51609, 51768, 92097E |
| ZETOR | 93407505 |
| ZETTELMEYER | 00405712, 0040571203, 00MU57120, 405712, 4057120, 40571203, MU57120, MU7512 |
| ZF | 64902502 |
