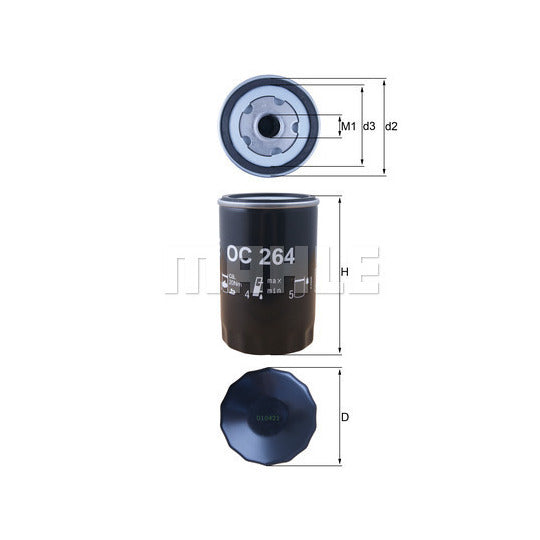

Mahle
OC 264 Oil Filter
SKU / part number
Mahle OC 264 Oil Filter. Part no. OC-264. Check specifications, vehicle fitment and references below.
Specifications
Diameter
76.0 | mm
Height
120.5 | mm
Filter type
Spin-on Filter
Thread Size
3/4"-16UNF-2B
Diameter 2
71.5 mm
Seal Ring Diameter
62.5 mm
Tightening Torque
20 Nm
article number of the recommended special tool
OCS 1
Supplementary Article/Supplementary Info 2
with one anti-return valve
Valve Type
Overflow Valve
Packaging height
13.10 cm
Net Weight
363 g
Packaging width
8.10 cm
Packaging length
8.1 cm
Shipping details
Weight
0.355 Kg
Customs Code
842123
Country of Origin
China
OE Numbers
| AUDI | 034115561A, 06A115561, 06A115561B, 06A115561E, 078115561K, 1JM115561BZ, 34115561A, 6A115561, 6A115561B, 78115561K |
|---|---|
| CUPRA | 034115561A, 06A115561, 06A115561B, 06A115561E, 078115561K, 1JM115561BZ, 34115561A, 6A115561 |
| SEAT | 034115561A, 06A115561, 06A115561B, 34115561A, 6A115561, 6A115561B |
| SKODA | 034115561A, 06A115561, 06A115561B, 34115561A, 6A115561, 6A115561B |
| VW | 034115561A, 06A115561, 06A115561B, 06A115561E, 078115561K, 1JM115561BZ, 34115561A, 6A115561, 6A115561B, 78115561K |
Cross-Reference Numbers
| ACDelco | X4019E |
|---|---|
| ALCO FILTER | SP978 |
| AUDI | 034115561A, 06A115561, 06A115561B, 06A115561E, 078115561K, 1JM115561BZ, 34115561A, 6A115561, 6A115561B, 78115561K |
| BLUE PRINT | ADV182108 |
| BORG & BECK | BFO4023 |
| BOSCH | 0451103070, 0451103225, 0451103314, 0451103344, 0986B00004, 1451103524, F026408902, P3314 |
| CHAMP | LS200, LS300 |
| CHAMPION | C149, C183, C183/606, COF100183S |
| CLEAN FILTERS | DO894, DO907 |
| COOPERS | Z1195, Z1758 |
| CROSLAND | 2005, 2211, 2326 |
| CUPRA | 034115561A, 06A115561, 06A115561B, 06A115561E, 078115561K, 1JM115561BZ, 34115561A, 6A115561 |
| CoopersFiaam | FT5259, Z1195, Z1758 |
| DELPHI | FX0130 |
| FEBI BILSTEIN | 22550 |
| FIAMM | FT1589 |
| FILTRON | OP526/1, OP526/1t |
| FRAD | 26.43.31/110 |
| FRAM | PH10298, PH2870A, PH5552, PH561 |
| HENGST FILTER | H14W15, H14W27 |
| HOFFER | 7605002/9 |
| KAGER | 100014 |
| KOLBENSCHMIDT | 161OS, 50013529, 50013529/10, 529OS |
| LUCAS ELECTRICAL | EDL973 |
| MAGNETI MARELLI | 152071758731, 359002300700, 71758731 |
| MANN-FILTER | W719/25, W719/30, W719/3010 |
| MAPCO | 61096 |
| MEAT & DORIA | 15002/9 |
| MECAFILTER | ELH4297 |
| MGA | FH1048 |
| MISFAT | Z291A |
| MOTAQUIP | VFL355, VFL425 |
| MOTRIO | 8671000207 |
| OPTIMAL | OP-FOF40203 |
| PBR | BC1278 |
| PURFLUX | LS255, LS324 |
| PUROLATOR | L27017, PL5017 |
| QUINTON HAZELL | WL7071 |
| SEAT | 034115561A, 06A115561, 06A115561B, 34115561A, 6A115561, 6A115561B |
| SKODA | 034115561A, 06A115561, 06A115561B, 34115561A, 6A115561, 6A115561B |
| SOFIMA | S3291R, S3436R |
| SogefiPro | FT1589, FT5259 |
| TECNECO FILTERS | OL130 |
| TECNOCAR | R130, R640 |
| TRUCKTEC AUTOMOTIVE | 0718020 |
| UFI | 2329100, 2343600 |
| UNIPART | GFE352 |
| VAICO | 100320, V100320 |
| VALEO | 586029 |
| VW | 034115561A, 06A115561, 06A115561B, 06A115561E, 078115561K, 1JM115561BZ, 34115561A, 6A115561, 6A115561B, 78115561K |
| WIX FILTERS | WL7071 |
