Nüral

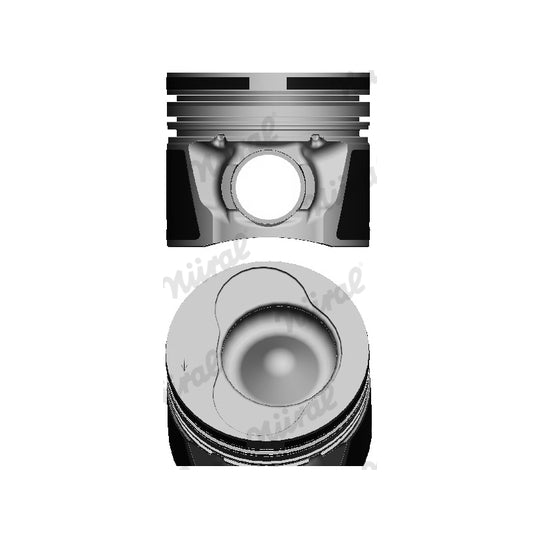

87-501500-40 Piston
SKU / part number
Nüral 87-501500-40 Piston. Part no. 87-501500-40. Check specifications, vehicle fitment and references below.
Specifications
Height
69.8 | mm
Supplementary Article/Supplementary Info 2
with bush for piston pin boss
Supplementary Article/Supplementary Info 2
with piston ring carrier
Recess Depth 1
16.8 mm
Compression Height
45.8 mm
Cylinder Bore
81 mm
Bolt Head Diameter
26 mm
Recess Diameter
46 mm
Bolt Length
68 mm
Valve Pocket Depth 1
1.35 mm
Valve Pocket Depth 2
1.35 mm
Component Number
08-501500-10
Machined
with cut-out for oil jet
Standard Size
STD
Shipping details
Weight
0.87 Kg
Customs Code
840999
Country of Origin
Turkey
Cross-Reference Numbers
| KOLBENSCHMIDT | 40 734 600 |
|---|---|
| MAHLE | 030 88 00 |
| PERFECT CIRCLE | 56007380 |
| VAG | 074 107 065 R |
