Nüral

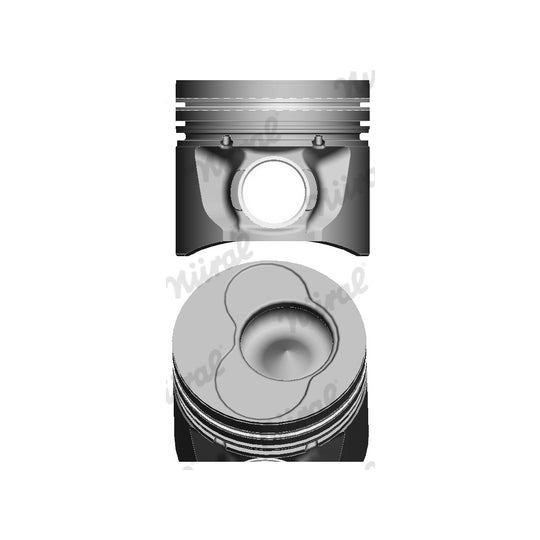

87-114900-95 Piston
SKU / part number
Nüral 87-114900-95 Piston. Part no. 8711490095. Check specifications, vehicle fitment and references below.
Specifications
Height
71.8 | mm
Fitting Position
for cylinder 3
Fitting Position
for cylinder 4
Supplementary Article/Supplementary Info 2
with bush for piston pin boss
Supplementary Article/Supplementary Info 2
with piston ring carrier
Recess Depth 1
17.65 mm
Piston Clearance
0.07 mm
Compression Height
45.8 mm
Cylinder Bore
79.5 mm
Bolt Head Diameter
26 mm
Recess Diameter
38 mm
Bolt Length
66 mm
Valve Pocket Depth 1
1.1 mm
Component Number
08-114900-00
Machined
with cut-out for oil jet
Standard Size
STD
Shipping details
Weight
0.84 Kg
Customs Code
840999
Country of Origin
Turkey
Cross-Reference Numbers
| AUDI | 028 107 065 CA, 028 107 065 CB, 038 107 065 DD |
|---|---|
| KOLBENSCHMIDT | 94 428 700 |
| MAHLE | 030 21 00, 030 30 00, 030 41 00, 030 47 00 |
| VAG | 028 107 065 CA, 028 107 065 CB, 038 107 065 DD |
