Nüral

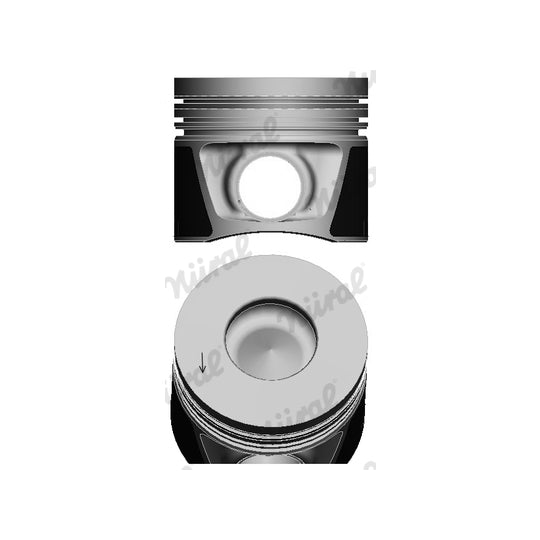

87-139500-00 Piston
SKU / part number
Nüral 87-139500-00 Piston. Part no. 8713950000. Check specifications, vehicle fitment and references below.
Specifications
Height
68.8 | mm
Production Number
07901J
Supplementary Article/Supplementary Info 2
with bush for piston pin boss
Supplementary Article/Supplementary Info 2
with cooling duct
Supplementary Article/Supplementary Info 2
with piston ring carrier
Supplementary Article/Supplementary Info 2
for keystone connecting rod
Recess Depth 1
17.8 mm
Piston Clearance
0.06 mm
Compression Height
45.8 mm
Cylinder Bore
81 mm
Bolt Head Diameter
26 mm
Recess Diameter
38 mm
Bolt Length
66 mm
Component Number
08-139500-00
Machined
with cut-out for oil jet
Standard Size
STD
Piston Chamber Volume
23.75 cm³
Shipping details
Weight
0.86 Kg
Customs Code
840999
Country of Origin
Poland
Cross-Reference Numbers
| KOLBENSCHMIDT | 40 387 600 |
|---|---|
| MAHLE | 028 02 00 |
| VAG | 03G107065C, 03G107065E, 03G107065J, 03G107065J001 |
