Trw

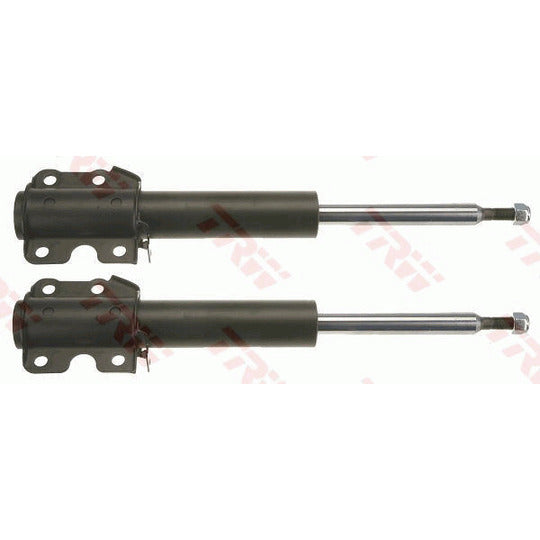

JGM1004T Shock Absorber
SKU / part number
Trw JGM1004T Shock Absorber. Part no. JGM1004T. Check specifications, vehicle fitment and references below.
Specifications
Diameter
58 | mm
Length 1
511 | mm
Length 2
326 | mm
Fitting Position
Front Axle
Shock Absorber Type
Gas Pressure
Shock Absorber Design
Suspension Strut
Shock Absorber System
Twin-Tube
Shock Absorber Mounting Type
Top pin
Shock Absorber Mounting Type
Bottom Yoke
Piston Rod Diameter
28 mm
Quantity per axle
1
Shipping details
Weight
6.731 Kg
Weight Volumetric
8.75 Kg
Customs Code
870880
Country of Origin
China
Cross-Reference Numbers
| AL-KO | 300910, 302140, 3091 |
|---|---|
| AUDI | 2D0 413 031 |
| BENDIX | 060749GB, 060749HB |
| BILSTEIN | 22-123411, 22-214751 |
| DELPHI | DG9025 |
| FEBI BILSTEIN | 193109 |
| KONI | 87-2604, 87-2638 |
| KRAFT AUTOMOTIVE | 4001350 |
| KYB | 335809, 335810, 335915 |
| MERCEDES-BENZ | 690 320 71 30, 901 320 02 30, 901 320 03 30, 901 320 08 30, 901 320 13 30, 901 320 14 30, 901 320 15 30, 901 320 17 30, 901 320 18 30, 901 320 20 30, 901 320 21 30, 901 320 22 30, 901 320 29 30, 903 320 03 30, 903 320 05 30, 904 320 25 30, A 690 320 71 30, A 901 320 02 30, A 901 320 03 30, A 901 320 08 30, A 901 320 13 30, A 901 320 14 30, A 901 320 15 30, A 901 320 17 30, A 901 320 18 30, A 901 320 20 30, A 901 320 21 30, A 901 320 22 30, A 901 320 29 30, A 903 320 03 30, A 903 320 05 30, A 904 320 25 30 |
| METZGER AUTOTEILE | 2340015 |
| MEYLE | 026 623 0001, 026 623 0007, 026 623 0008 |
| MGA | AM5139H |
| MONROE | V4503 |
| Maysan Mando | PS9831155 |
| NK | 62333091 |
| PE Automotive | 01352910A |
| QUINTON HAZELL | 129793 |
| SEAT | 2D0 413 031 |
| SKODA | 2D0 413 031 |
| ST-TEMPLIN | 041707950095, 041707950250, 041707950301 |
| TRUCKTEC AUTOMOTIVE | 0230064, 0230077 |
| VW | 2D0 413 029, 2D0 413 031 |
