Ate

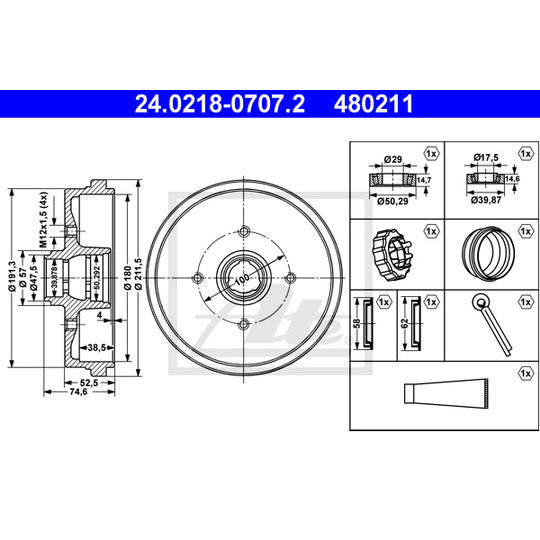

24.0218-0707.2 Brake Drum
SKU / part number
Ate 24.0218-0707.2 Brake Drum. Part no. 24-0218-0707-2. Check specifications, vehicle fitment and references below.
Specifications
Supplementary Article/Supplementary Info 2
with wheel bearing
Inner brake drum diameter
180.0 mm
max. brake drum reboring dimension
181.0 mm
Inner brake drum height
38.5 mm
Number of Holes
4
Bolt Hole Circle Ø
100.0 mm
Thread Size
M12x1,5
Total brake drum height
74.6 mm
Outer brake drum diameter
211.5 mm
Support plate diameter
50.3 mm
Inner Diameter 2
39.9 mm
Test Mark
E1 90R-02D0955/0093
Trade Numbers
480211
Shipping details
Weight
6.162 Kg
Customs Code
870830
Country of Origin
Italy
Cross-Reference Numbers
| AIMCO | 3812 |
|---|---|
| BENDIX | 329128B, 329129B |
| BOSCH | 0 986 477 111 |
| BREMBO | 14.3256.10, 14.3256.50 |
| CAR | 433.200 |
| CIFAM | 700-191, 700-191K |
| DELPHI | BF165, BF96 |
| FEBI BILSTEIN | 02123 |
| FTE | BT131 |
| HELLA | 8DT 355 301-631 |
| HELLA PAGID | 8DT 355 301-631 |
| JURID | 329128J, 329129J |
| METELLI | 18-0191, 18-0191K |
| MGA | TR7405 |
| MINTEX | MBD014 |
| NK | 254708 |
| OMC | 100609CW |
| PAGID | 63905 |
| PEX | 15.0087, 15.0188 |
| PILENGA | 6150 |
| QUINTON HAZELL | BDR131 |
| RAYBESTOS | 9107 |
| REMSA | 7007.00 |
| ROADHOUSE | 7007.00 |
| SEAT | 171 501 615 B, 191 501 615, 191 501 615 B |
| SEBRO | 71 69 |
| SKF | VKBD 0148 |
| TEXTAR | 94006600 |
| TRW | DB4081B |
| VAG | 171 501 615, 171 501 615 A, 171 501 615 B, 171 501 615 C, 191 501 615, 191 501 615 B, 823 501 615 B |
| VALEO | 237009 |
| ZIMMERMANN | 600.1950.00 |
