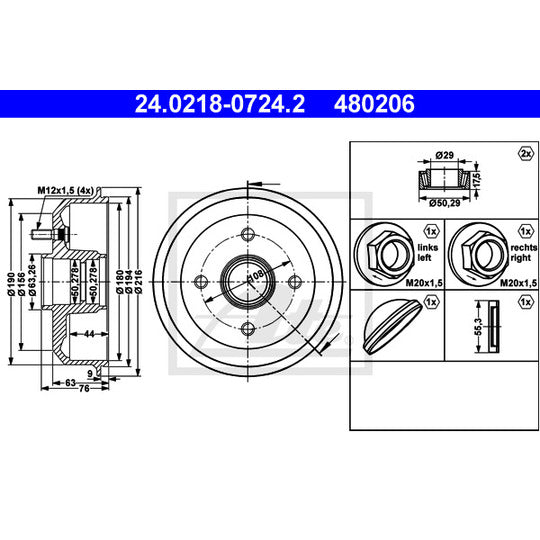

Ate
24.0218-0724.2 Brake Drum
SKU / part number
Ate 24.0218-0724.2 Brake Drum. Part no. 24-0218-0724-2. Check specifications, vehicle fitment and references below.
Specifications
Supplementary Article/Supplementary Info 2
with wheel bearing
Supplementary Article/Supplementary Info 2
without ABS sensor ring
Inner brake drum diameter
180.0 mm
max. brake drum reboring dimension
181.3 mm
Inner brake drum height
44.0 mm
Number of Holes
4
Bolt Hole Circle Ø
108.0 mm
Supplementary Article/Supplementary Info 2
with wheel studs
Thread Size
M12x1,5
Total brake drum height
76.0 mm
Outer brake drum diameter
216.0 mm
Support plate diameter
50.3 mm
Test Mark
E1 90R-02D0955/0093
Trade Numbers
480206
Shipping details
Weight
5.065 Kg
Customs Code
870830
Country of Origin
Italy
Cross-Reference Numbers
| BENDIX | 329197B, 329715B |
|---|---|
| BOSCH | 0 986 477 099 |
| BREMBO | 14.5722.10, 14.5722.50, 14.7246.10, 14.7246.50 |
| CIFAM | 700-289, 700-289K, 700-294, 700-294K |
| DELPHI | BF329, BF469 |
| FEBI BILSTEIN | 05670 |
| FORD | 1000859, 1017668, 1045392, 4034886, 6176743, 6492327, 6560026, 6920710, 7296356 |
| FTE | BT1018 |
| HELLA | 8DT 355 300-161, 8DT 355 300-361, 8DT 355 301-331 |
| HELLA PAGID | 8DT 355 300-161, 8DT 355 300-361, 8DT 355 301-331 |
| HERTH+BUSS JAKOPARTS | J3403001 |
| JURID | 329197J, 329715J |
| MAZDA | 1E00-26-251, 1E00-26-251A, 1E01-26-251, 1E01-26-251A, 1E02-26-251 |
| METELLI | 18-0289, 18-0289K, 18-0294, 18-0294K |
| MGA | TR7544 |
| MINTEX | MBD008, MBD036 |
| NIPPARTS | J3403001, J3403002 |
| NK | 252530 |
| OMC | 100944CW |
| PAGID | 61007, 61237, 62909 |
| PEX | 15.0156 |
| QUINTON HAZELL | BDR393, BDR410, BDR595, BTF393 |
| SEBRO | 33 36 |
| SKF | VKBD 0154, VKBD 0155 |
| TEXTAR | 94018500, 94023700, 98100 0185 0 1, 98100 0237 0 1 |
| TRW | DB4028B, DB4276, DB4276B, DB4296, DB4306, DB4306B |
| VALEO | 237032, 237066 |
| ZIMMERMANN | 250.1764.00, 250.1766.00 |
