Ate

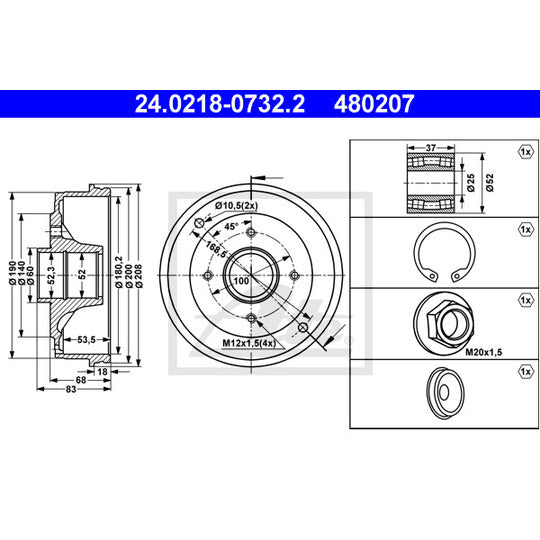

24.0218-0732.2 Brake Drum
SKU / part number
Ate 24.0218-0732.2 Brake Drum. Part no. 24-0218-0732-2. Check specifications, vehicle fitment and references below.
Specifications
Supplementary Article/Supplementary Info 2
with wheel bearing
Inner brake drum diameter
180.0 mm
max. brake drum reboring dimension
181.0 mm
Inner brake drum height
53.5 mm
Number of Holes
4
Bolt Hole Circle Ø
100.0 mm
Thread Size
M12x1,5
Total brake drum height
83.0 mm
Outer brake drum diameter
208.0 mm
Support plate diameter
52.0 mm
Inner Diameter 2
52.3 mm
Test Mark
E1 90R-02D0955/0095
Trade Numbers
480207
Shipping details
Weight
5.011 Kg
Customs Code
870830
Country of Origin
Italy
Cross-Reference Numbers
| BENDIX | 329106B, 329224B, 329700B |
|---|---|
| BOSCH | 0 986 477 061, 0 986 477 112 |
| BREMBO | 14.5493.10, 14.5493.50, 14.7754.10 |
| CIFAM | 700-142, 700-142K, 700-156, 700-156K |
| DACIA | 77 00 419 824 |
| DELPHI | BF272 |
| FEBI BILSTEIN | 09029 |
| FTE | BT178 |
| HELLA | 8DT 355 300-351, 8DT 355 301-261 |
| HELLA PAGID | 8DT 355 300-351, 8DT 355 301-261 |
| JURID | 329106J, 329224J, 329700J |
| METELLI | 18-0142, 18-0142K, 18-0156, 18-0156K |
| MGA | TR7400, TR7539 |
| MINTEX | MBD024, MBD183 |
| NK | 253906 |
| OMC | 100528CW |
| PAGID | 61236, 62807 |
| PEX | 15.0057, 15.0069 |
| PILENGA | 6043 |
| QUINTON HAZELL | 7014.00, BDR178, BDR439, BTF178 |
| REMSA | 7014.00 |
| RENAULT | 77 00 419 824, 77 00 783 030 |
| ROADHOUSE | 7014.00 |
| SKF | VKBD 0112 |
| TEXTAR | 94013500, 94023600, 98100 0135 0 1, 98100 0236 0 1 |
| TRW | DB245, DB4066, DB4066B, DB4245, DB4245B |
| VALEO | 237006 |
| ZIMMERMANN | 470.1850.00 |
