Ate

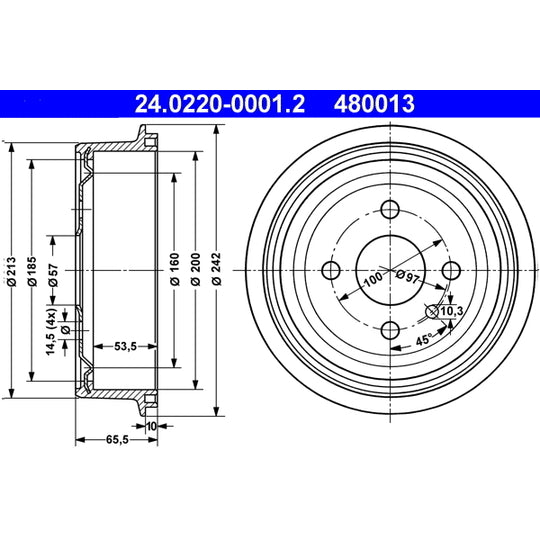

24.0220-0001.2 Brake Drum
SKU / part number
Ate 24.0220-0001.2 Brake Drum. Part no. 24-0220-0001-2. Check specifications, vehicle fitment and references below.
Specifications
Inner brake drum diameter
200.0 mm
max. brake drum reboring dimension
201.3 mm
Inner brake drum height
53.5 mm
Number of Holes
4
Bolt Hole Circle Ø
100.0 mm
Bore Diameter
14.5 mm
Total brake drum height
65.5 mm
Outer brake drum diameter
242.0 mm
Support plate diameter
57.0 mm
Trade Numbers
480013
Shipping details
Weight
3.742 Kg
Customs Code
870830
Country of Origin
Italy
Cross-Reference Numbers
| BENDIX | 329202B |
|---|---|
| BOSCH | 0 986 477 018 |
| BREMBO | 14.4719.10 |
| CHEVROLET | 96175281 |
| CIFAM | 700-300 |
| DAEWOO | 96175281 |
| DELPHI | BF102 |
| FEBI BILSTEIN | 08849 |
| FTE | BT109 |
| HELLA | 8DT 355 301-171 |
| HELLA PAGID | 8DT 355 301-171 |
| HERTH+BUSS JAKOPARTS | J3400900 |
| JURID | 329202J, 8282005128 |
| METELLI | 18-0300 |
| MGA | T7422 |
| MINTEX | MBD002 |
| NIPPARTS | J3400900 |
| NK | 259905 |
| OMC | 100953 |
| OPEL | 5 68 039, 5 68 054, 5 68 057, 90168958 |
| PAGID | 62402 |
| PEX | 15.0166 |
| QUINTON HAZELL | 7013.00, BDR109, BTF109 |
| REMSA | 7013.00 |
| ROADHOUSE | 7013.00 |
| SEBRO | 51 28 |
| TEXTAR | 94008600, 98100 0086 0 1 |
| TRW | DB4002 |
| VAUXHALL | 5 68 039, 5 68 054, 5 68 057, 90168958 |
| ZIMMERMANN | 430.1620.00, 430.1620.20 |
