Ate

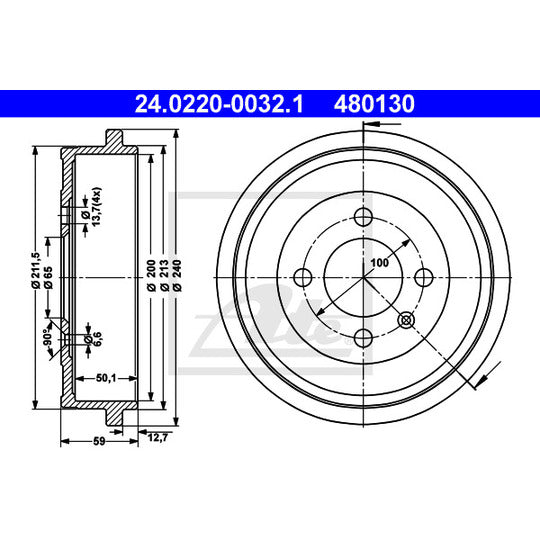

24.0220-0032.1 Brake Drum
SKU / part number
Ate 24.0220-0032.1 Brake Drum. Part no. 24-0220-0032-1. Check specifications, vehicle fitment and references below.
Specifications
Inner brake drum diameter
200.0 mm
max. brake drum reboring dimension
201.5 mm
Inner brake drum height
50.1 mm
Number of Holes
4
Bolt Hole Circle Ø
100.0 mm
Bore Diameter
13.7 mm
Total brake drum height
59.0 mm
Outer brake drum diameter
240.0 mm
Support plate diameter
65.0 mm
Test Mark
E1 90R-02D0324/1877
Trade Numbers
480130
Shipping details
Weight
4.368 Kg
Customs Code
870830
Country of Origin
China
Cross-Reference Numbers
| BENDIX | 329751B |
|---|---|
| BOSCH | 0 986 477 106 |
| BREMBO | 14.9384.10 |
| CIFAM | 700-219 |
| DELPHI | BF410 |
| FEBI BILSTEIN | 24032 |
| FTE | BT549 |
| HELLA | 8DT 355 301-571 |
| HELLA PAGID | 8DT 355 301-571 |
| METELLI | 18-0219 |
| MGA | T7525 |
| OMC | 100641 |
| PAGID | 62933 |
| PEX | 15.0105 |
| SEAT | 1S0 609 617, 6X0 609 617 A |
| SKODA | 1S0 609 617 |
| TEXTAR | 94022800, 98100 0228 0 1 |
| TRW | DB4260 |
| VAG | 1S0 609 617, 6X0 609 617 A |
| ZIMMERMANN | 600.1964.00, 600.1964.20 |
