Ate

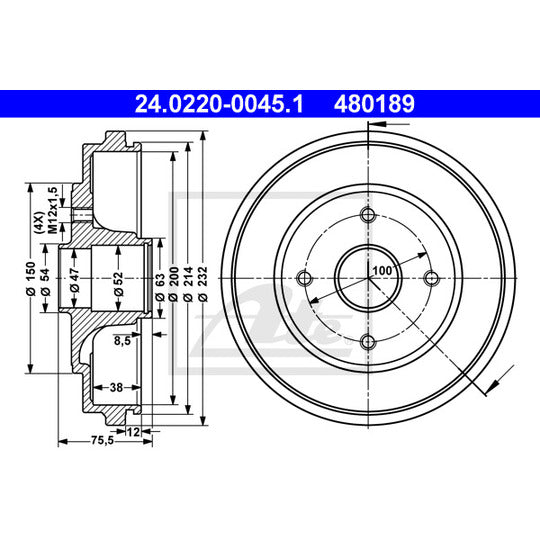

24.0220-0045.1 Brake Drum
SKU / part number
Ate 24.0220-0045.1 Brake Drum. Part no. 24-0220-0045-1. Check specifications, vehicle fitment and references below.
Specifications
Supplementary Article/Supplementary Info 2
without wheel bearing
Supplementary Article/Supplementary Info 2
without ABS sensor ring
Inner brake drum diameter
200.0 mm
max. brake drum reboring dimension
202.0 mm
Inner brake drum height
38.0 mm
Support plate diameter
52.0 mm
Inner Diameter 2
47.0 mm
Number of Holes
4
Bolt Hole Circle Ø
100.0 mm
Thread Size
M12x1,5
Total brake drum height
75.5 mm
Outer brake drum diameter
232.0 mm
Trade Numbers
480189
Shipping details
Weight
5.041 Kg
Customs Code
870830
Country of Origin
United Kingdom
Cross-Reference Numbers
| DELPHI | BF509 |
|---|---|
| FTE | BT1034 |
| HELLA | 8DT 355 300-691, 8DT 355 301-031 |
| HELLA PAGID | 8DT 355 300-691, 8DT 355 301-031 |
| LPR | 7D0655 |
| MINTEX | MBD257 |
| NK | 253625 |
| OPEL | 47 07 272, 9214294 |
| PAGID | 61278, 61335 |
| REMSA | 7101.00 |
| ROADHOUSE | 7101.00 |
| SUZUKI | 43511-85E50 |
| TEXTAR | 94027800 |
| TRW | DB4348, DB4348B |
| VALEO | 237079, 237114 |
| VAUXHALL | 47 07 272, 9214294 |
| sbs | 1825253625 |
