Ate

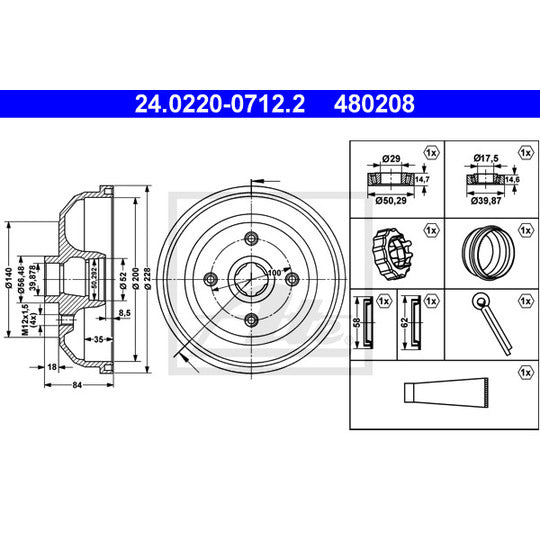

24.0220-0712.2 Brake Drum
SKU / part number
Ate 24.0220-0712.2 Brake Drum. Part no. 24-0220-0712-2. Check specifications, vehicle fitment and references below.
Specifications
Supplementary Article/Supplementary Info 2
with wheel bearing
Inner brake drum diameter
200.0 mm
max. brake drum reboring dimension
201.0 mm
Inner brake drum height
35.0 mm
Number of Holes
4
Bolt Hole Circle Ø
100.0 mm
Thread Size
M12x1,5
Total brake drum height
84.0 mm
Outer brake drum diameter
228.0 mm
Support plate diameter
50.3 mm
Inner Diameter 2
39.9 mm
Test Mark
E1 90R-02D0955/0099
Trade Numbers
480208
Shipping details
Weight
4.625 Kg
Customs Code
870830
Country of Origin
United Kingdom
Cross-Reference Numbers
| BENDIX | 329206B, 329606B, 329711B |
|---|---|
| BOSCH | 0 986 477 040 |
| BREMBO | 14.4978.10, 14.4978.50 |
| CIFAM | 700-304, 700-304K, 700-313, 700-313K |
| DELPHI | BF111 |
| FEBI BILSTEIN | 02048 |
| FTE | BT126 |
| HELLA | 8DT 355 301-161 |
| HELLA PAGID | 8DT 355 301-161 |
| JURID | 329206J, 329606J, 8282008002 |
| METELLI | 18-0304, 18-0304K, 18-0313, 18-0313K |
| MGA | TR7415 |
| MINTEX | MBD006 |
| NK | 253611 |
| OMC | 100958CW |
| OPEL | 4 18 117, 90007526 |
| PAGID | 62401 |
| PEX | 15.0169 |
| QUINTON HAZELL | 7012.00, BDR126, BTF126 |
| REMSA | 7012.00 |
| ROADHOUSE | 7012.00 |
| SEBRO | 51 25 |
| SKF | VKBD 0159 |
| TEXTAR | 94009900, 98100 0099 0 1 |
| TRW | DB4006, DB4006B |
| VAUXHALL | 4 18 117, 90007526 |
| ZIMMERMANN | 430.1618.00 |
