Ate

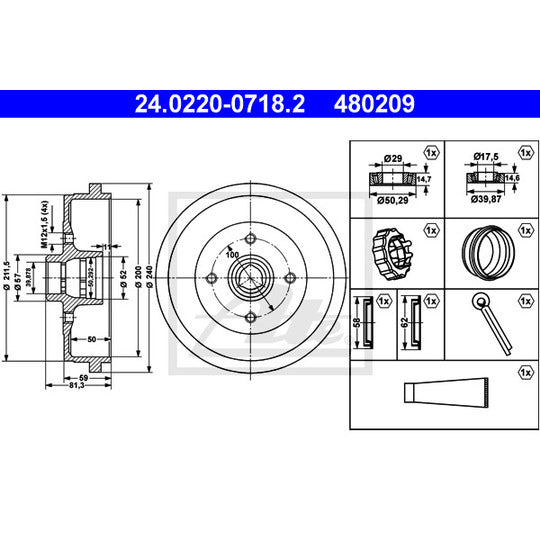

24.0220-0718.2 Brake Drum
SKU / part number
Ate 24.0220-0718.2 Brake Drum. Part no. 24-0220-0718-2. Check specifications, vehicle fitment and references below.
Specifications
Supplementary Article/Supplementary Info 2
with wheel bearing
Supplementary Article/Supplementary Info 2
without ABS sensor ring
Inner brake drum diameter
200.0 mm
max. brake drum reboring dimension
201.0 mm
Inner brake drum height
50.0 mm
Number of Holes
4
Bolt Hole Circle Ø
100.0 mm
Thread Size
M12x1,5
Total brake drum height
81.3 mm
Outer brake drum diameter
240.0 mm
Support plate diameter
50.3 mm
Inner Diameter 2
39.9 mm
Test Mark
E1 90R-02D0955/0094
Trade Numbers
480209
Shipping details
Weight
8.051 Kg
Customs Code
870830
Country of Origin
United Kingdom
Cross-Reference Numbers
| AIMCO | 3814, 3829 |
|---|---|
| BENDIX | 329126B, 329136B, 329704B, 329706B |
| BOSCH | 0 986 477 041 |
| BREMBO | 14.3251.10, 14.5826.10, 14.5826.50 |
| CIFAM | 700-188, 700-188K, 700-202, 700-202K, 700-213, 700-213K, 700-259, 700-259K |
| DELPHI | BF310 |
| FEBI BILSTEIN | 14060 |
| FTE | BT1015, BT224 |
| HELLA | 8DT 355 301-701 |
| HELLA PAGID | 8DT 355 301-701 |
| JURID | 329126J, 329706J, 8282002325 |
| METELLI | 18-0188, 18-0188K, 18-0202, 18-0202K, 18-0213, 18-0213K, 18-0259, 18-0259K |
| MGA | TR7431, TR7445 |
| MINTEX | MBD040 |
| NK | 254709 |
| OMC | 100635CW |
| PAGID | 63912 |
| PEX | 15.0096, 15.0101, 15.0134 |
| PILENGA | 6151 |
| QUINTON HAZELL | 7011.00, 7052.00, BDR224, BDR294, BTF224 |
| RAYBESTOS | 9556 |
| REMSA | 7011.00, 7052.00 |
| ROADHOUSE | 7011.00, 7052.00 |
| SEAT | 191 501 615 A, 1H0 501 615 A, 331 501 615 A, 841 501 615 A |
| SEBRO | 71 73 |
| SKF | VKBD 0149 |
| SKODA | 115 330 192, 191 501 615 A, 1H0 501 615 A, 331 501 615 A, 6U0 501 615 A, 6U0 501 615 B, 841 501 615 A |
| TEXTAR | 94006700, 98100 0067 0 1 |
| TRW | DB4014, DB4014B, DB4127, DB4127B |
| VAG | 191 501 615 A, 1H0 501 615 A, 323 501 615, 331 501 615 A, 6U0 501 615 B, 841 501 615 A |
| VALEO | 237049 |
| ZIMMERMANN | 600.1959.00 |
