Ate

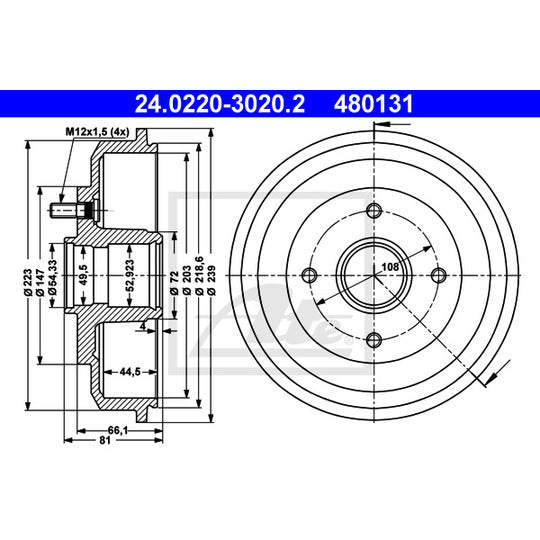

24.0220-3020.2 Brake Drum
SKU / part number
Ate 24.0220-3020.2 Brake Drum. Part no. 24-0220-3020-2. Check specifications, vehicle fitment and references below.
Specifications
Supplementary Article/Supplementary Info 2
without wheel bearing
Supplementary Article/Supplementary Info 2
without ABS sensor ring
Inner brake drum diameter
203.0 mm
max. brake drum reboring dimension
204.3 mm
Inner brake drum height
44.5 mm
Number of Holes
4
Bolt Hole Circle Ø
108.0 mm
Supplementary Article/Supplementary Info 2
with wheel studs
Thread Size
M12x1,5
Total brake drum height
81 mm
Outer brake drum diameter
239.0 mm
Support plate diameter
52.3 mm
Inner Diameter 2
49.5 mm
Trade Numbers
480131
Shipping details
Weight
6.352 Kg
Customs Code
870830
Country of Origin
United Kingdom
Cross-Reference Numbers
| BENDIX | 329714B |
|---|---|
| BOSCH | 0 986 477 102 |
| BREMBO | 14.9395.10, 14.A710.10 |
| CIFAM | 700-319, 700-319K |
| DELPHI | BF402 |
| FEBI BILSTEIN | 15993 |
| FORD | 3049844, 4145506, 4186874 |
| HELLA | 8DT 355 300-261 |
| HELLA PAGID | 8DT 355 300-261 |
| JURID | 329714J |
| METELLI | 18-0319, 18-0319K |
| MGA | T7553 |
| MINTEX | MBD064 |
| NK | 252534 |
| OMC | 100994 |
| PAGID | 61225 |
| PEX | 15.0192 |
| QUINTON HAZELL | BDR542 |
| TEXTAR | 94022500, 98100 0225 0 1 |
| TRW | DB4275, DB4275B, DB4338 |
| VALEO | 237012 |
| ZIMMERMANN | 250.1765.00 |
