Ate

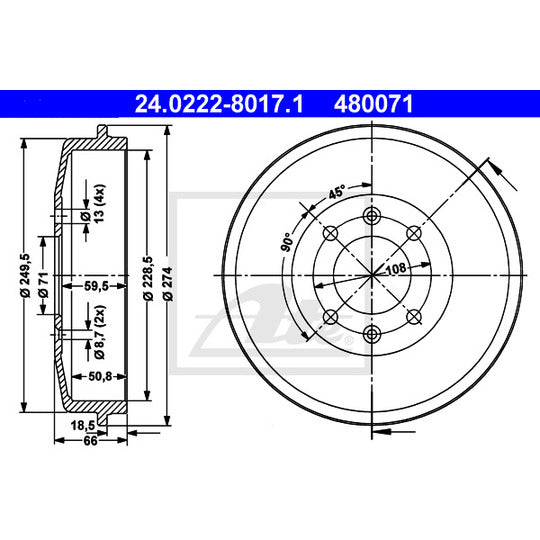

24.0222-8017.1 Brake Drum
SKU / part number
Ate 24.0222-8017.1 Brake Drum. Part no. 24-0222-8017-1. Check specifications, vehicle fitment and references below.
Specifications
Inner brake drum diameter
229 mm
max. brake drum reboring dimension
230.0 mm
Inner brake drum height
50.8 mm
Number of Holes
4
Bolt Hole Circle Ø
108.0 mm
Bore Diameter
13.0 mm
Total brake drum height
66.0 mm
Outer brake drum diameter
274.0 mm
Support plate diameter
71.0 mm
Test Mark
E1 90R-02D0324/1878
Trade Numbers
480071
Shipping details
Weight
6.235 Kg
Customs Code
870830
Country of Origin
Germany
Cross-Reference Numbers
| BENDIX | 329117B, 329150B |
|---|---|
| BOSCH | 0 986 477 060 |
| BREMBO | 14.3283.10, 14.5595.10 |
| CIFAM | 700-161, 700-233 |
| CITROËN | 4247 24, 91 509 908 |
| DELPHI | BF169, BF265 |
| FTE | BT139 |
| HELLA | 8DT 355 301-231 |
| HELLA PAGID | 8DT 355 301-231 |
| JURID | 329117J, 329150J |
| METELLI | 18-0161, 18-0233 |
| MGA | T7407, T7419 |
| MINTEX | MBD030 |
| NK | 253708 |
| OMC | 100534, 100706 |
| PAGID | 60604, 62505 |
| PEUGEOT | 4247 24 |
| PEX | 15.0072, 15.0115 |
| QUINTON HAZELL | 7032.00, BDR139, BDR203 |
| REMSA | 7032.00 |
| ROADHOUSE | 7032.00 |
| TEXTAR | 94010300, 94014400, 98100 0103 0 1, 98100 0144 0 1 |
| TRW | DB4077, DB4096 |
| VALEO | 237000 |
| ZIMMERMANN | 440.1830.00 |
