Ate
24.0222-8018.1 Brake Drum
SKU / part number
Ate 24.0222-8018.1 Brake Drum. Part no. 24-0222-8018-1. Check specifications, vehicle fitment and references below.

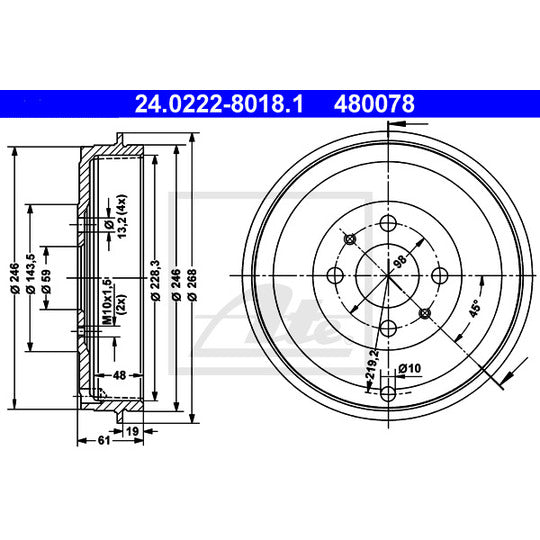

Specifications
Inner brake drum diameter
228 mm
max. brake drum reboring dimension
230.0 mm
Inner brake drum height
48.0 mm
Number of Holes
4
Bolt Hole Circle Ø
98.0 mm
Bore Diameter
13.2 mm
Total brake drum height
61.0 mm
Outer brake drum diameter
268.0 mm
Support plate diameter
59.0 mm
Test Mark
E1 90R-02D0324/1950
Trade Numbers
480078
Shipping details
Weight
5.654 Kg
Customs Code
870830
Country of Origin
Germany
Cross-Reference Numbers
| BENDIX | 329006B, 329022B, 329213B |
|---|---|
| BOSCH | 0 986 477 088, 0 986 477 212 |
| BREMBO | 14.5102.10, 14.7127.20 |
| CAR | 433.063 |
| CIFAM | 700-009, 700-022, 700-035 |
| CITROËN | 16 089 454 80, 16 173 290 80, 4247 55, 4247 58 |
| DELPHI | BF201, BF379 |
| FIAT | 51816526, 52015299, 60810025, 60814839, 7569600, 7769850 |
| FTE | BT146 |
| HELLA | 8DT 355 300-071, 8DT 355 301-091 |
| HELLA PAGID | 8DT 355 300-071, 8DT 355 301-091 |
| JURID | 329022J, 329213J |
| LPR | 7D0667 |
| METELLI | 18-0009, 18-0022, 18-0035 |
| MGA | T7449, T7457, T7472, TR7457 |
| MINTEX | MBD219, MBD319 |
| NK | 251001, 251913, 252310 |
| OMC | 100109, 100131, 100182, 100724 |
| PAGID | 60904, 61343 |
| PEUGEOT | 16 089 454 80, 16 173 290 80, 4247 55, 4247 58 |
| PEX | 15.0011, 15.0018, 15.0176 |
| PILENGA | 6230 |
| QUINTON HAZELL | 7056.00, BDR146, BTF146 |
| REMSA | 7056.00 |
| ROADHOUSE | 7056.00 |
| TEXTAR | 94014000, 94034000, 98100 0140 0 1, 98100 0340 0 1 |
| TRW | DB4017, DB4210, DB4387 |
| VALEO | 237036, 237037 |
| ZIMMERMANN | 230.1912.00 |
| sbs | 1825251913 |
