Ate
24.0222-8037.1 Brake Drum
SKU / part number
Ate 24.0222-8037.1 Brake Drum. Part no. 24-0222-8037-1. Check specifications, vehicle fitment and references below.

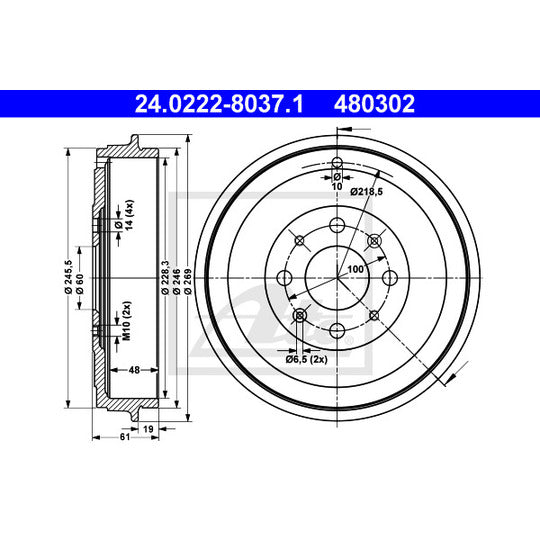

Specifications
Inner brake drum diameter
228 mm
max. brake drum reboring dimension
230.0 mm
Inner brake drum height
48.0 mm
Support plate diameter
60.0 mm
Number of Holes
4
Bolt Hole Circle Ø
100.0 mm
Bore Diameter
14.0 mm
Total brake drum height
61.0 mm
Outer brake drum diameter
269.0 mm
Test Mark
E1 90R-02D0324/1950
Trade Numbers
480302
Shipping details
Weight
5.778 Kg
Customs Code
870830
Country of Origin
China
Cross-Reference Numbers
| BENDIX | 329262B, BDM1074 |
|---|---|
| BOSCH | 0 986 477 208 |
| BREMBO | 14.A855.10 |
| CIFAM | 700-372 |
| DELPHI | BF503 |
| FEBI BILSTEIN | 171055 |
| FERODO | FDR329801 |
| FIAT | 51901443, 51901444, 55701380, 55703043, 55704058 |
| FTE | BT1033 |
| HELLA | 8DT 355 300-651 |
| HELLA PAGID | 8DT 355 300-651 |
| LPR | 7D0657 |
| METELLI | 18-0372 |
| MINTEX | MBD256 |
| OMC | 100142 |
| OPEL | 13423796, 5 68 000, 5 68 003, 5 68 270, 55701380, 55704058 |
| PAGID | 61272 |
| TEXTAR | 94027200 |
| TRW | DB4360 |
| VAUXHALL | 13423796, 5 68 000, 5 68 003, 5 68 270, 55701380, 55704058 |
| ZIMMERMANN | 430.1789.00, 430.1789.20 |
