Ate
24.0223-0013.2 Brake Drum
SKU / part number
Ate 24.0223-0013.2 Brake Drum. Part no. 24-0223-0013-2. Check specifications, vehicle fitment and references below.

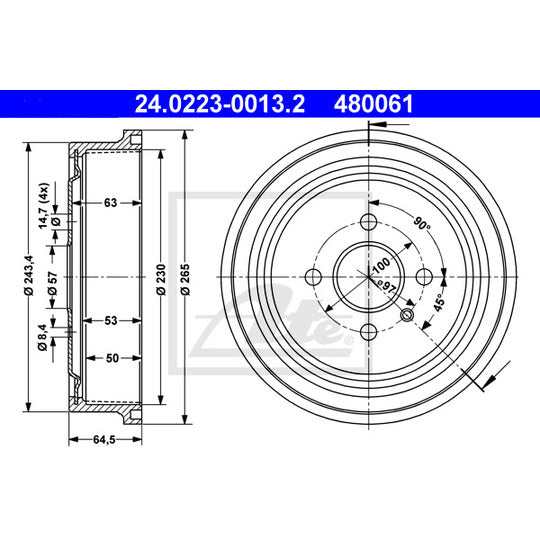

Specifications
Inner brake drum diameter
230.0 mm
max. brake drum reboring dimension
231.0 mm
Inner brake drum height
50.0 mm
Number of Holes
4
Bolt Hole Circle Ø
100.0 mm
Bore Diameter
14.7 mm
Total brake drum height
65.0 mm
Outer brake drum diameter
265.0 mm
Support plate diameter
57.0 mm
Trade Numbers
480061
Shipping details
Weight
4.391 Kg
Customs Code
870830
Country of Origin
Italy
Cross-Reference Numbers
| BENDIX | 329238B |
|---|---|
| BOSCH | 0 986 477 100 |
| BREMBO | 14.7715.10 |
| CIFAM | 700-305 |
| DELPHI | BF367 |
| FEBI BILSTEIN | 17310 |
| FTE | BT1013 |
| HELLA | 8DT 355 301-201 |
| HELLA PAGID | 8DT 355 301-201 |
| JURID | 329238J |
| METELLI | 18-0305 |
| MGA | T7555 |
| NK | 253614 |
| OMC | 100961 |
| OPEL | 5 68 063, 90495034 |
| PAGID | 62406 |
| PEX | 15.0170 |
| QUINTON HAZELL | 7084.00, BDR341, BTF341 |
| REMSA | 7084.00 |
| ROADHOUSE | 7084.00 |
| TEXTAR | 94020300, 98100 0203 0 1 |
| TRW | DB4229 |
| VAUXHALL | 5 68 063, 90495034 |
| ZIMMERMANN | 430.1780.00 |
