Blue Print

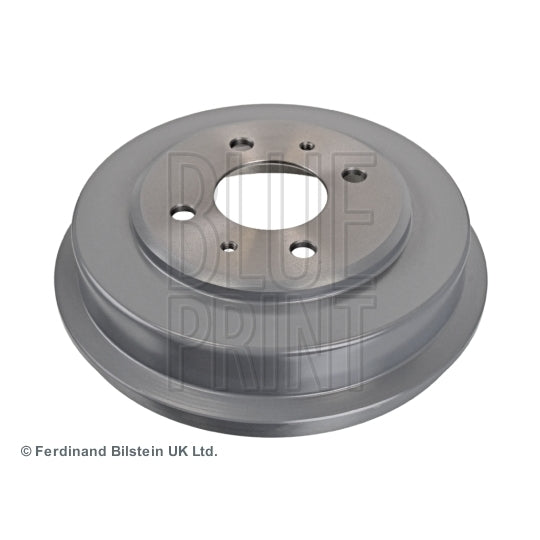

ADG04710 Brake Drum
SKU / part number
Blue Print ADG04710 Brake Drum. Part no. ADG04710. Check specifications, vehicle fitment and references below.
Specifications
Centering Diameter
62.5 | mm
Inner Diameter
203 | mm
Outer Diameter
249 | mm
Thickness
64 | mm
Width
45 | mm
Rim Hole Number
4
Number of mounting bores
2
Bolt Hole Circle Ø
100 mm
max. brake drum reboring dimension
205.2 mm
Fitting Position
Rear Axle
for OE number
58411-25201
Shipping details
Weight
4.43 Kg
Customs Code
870830
Country of Origin
United Kingdom
Cross-Reference Numbers
| A.B.S. | 2860-S |
|---|---|
| A.S.P. QualityTested | TAH20JM |
| A.Z. Meisterteile | AZMT-44-028-1005 |
| ABE | C60515ABE, C60517ABE |
| AP-SA | 7D0463 |
| ASHIKA | 56-0H-H20C |
| ASUKI | ABD-H901 |
| BENDIX Braking | BDM1123 |
| BOGAP | Y3120100 |
| BORG & BECK | BBR7222 |
| BRAXIS | AD5054 |
| BRECO | BT 1164 |
| BREMSI | CR5840 |
| BSG | BSG 40-225-010 |
| DANAHER | DD30123 |
| DBA Australia | DBA1679 |
| DELPHI | BF582 |
| DJ PARTS | BR1021 |
| EGT | 410125EGT, 410125cEGT |
| EUROBRAKE | 5825253410 |
| GAMA-SA | GM60021 |
| HELLA | 8DT 355 302-691 |
| HELLA PAGID | 8DT 355 302-691 |
| HYUNDAI | 58411-25201 |
| Hi-Q | SD1093 |
| IAP QUALITY PARTS | 710-07053 |
| JAPANPARTS | TA-H20C |
| JAPKO | 56H20C |
| JPN | 60H0517-JPN |
| KAVO PARTS | BD-3358 |
| LPR | 7D0728 |
| LPR-CN | 7D0463 |
| LPR-SA | 7D0463 |
| LYNXAUTO | BM-1068 |
| MANDO | MBD050004, MBD050016 |
| MASTER-SPORT GERMANY | 24021800342-PCS-MS, 24021800342-SET-MS |
| MAXGEAR | 19-4899 |
| MGA | T7577 |
| MILES | K111437 |
| MINTEX | MBD378 |
| NIPPARTS | J3400502 |
| NK | 253410 |
| NPS | H340I04 |
| PAGID | 61410 |
| PEMEBLA | BNXBDM1123, JAPTA-H16, JAPTA-H20C, JAPTAH20JM |
| QH Benelux | 66415 |
| RAP BRAKES | R-E0128 |
| RED-LINE | 41HY014 |
| REMSA | 7196.00 |
| ROADHOUSE | 7196.00 |
| SAMKO | S70728 |
| SAMKO-SA | 7D0463 |
| SIGMAUTO | DR5840 |
| STELLOX | 6026-4741-SX |
| Stark | SKBDM-0800132 |
| TEKNOSA | TBD5512-K |
| TEXTAR | 94040700 |
| TRW | DB4416 |
| VALEO | 237013 |
| VILLAR | 627.0331 |
| WOKING | B7196.00 |
| ZEKKERT | BS-6239 |
| ZentParts | Z01686 |
| sbs | 1825253410 |
