Blue Print

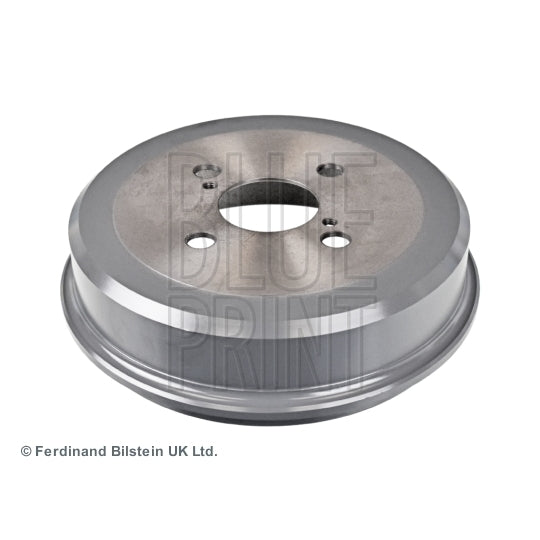

ADT34723 Brake Drum
SKU / part number
Blue Print ADT34723 Brake Drum. Part no. ADT34723. Check specifications, vehicle fitment and references below.
Specifications
Centering Diameter
55 | mm
Inner Diameter
200 | mm
Outer Diameter
237 | mm
Thickness
65 | mm
Width
58 | mm
Rim Hole Number
4
Number of mounting bores
2
Bolt Hole Circle Ø
100 mm
max. brake drum reboring dimension
201 mm
Fitting Position
Rear Axle
Shipping details
Weight
4.42 Kg
Customs Code
870830
Country of Origin
Germany
Cross-Reference Numbers
| A.Z. Meisterteile | AZMT-44-028-1061 |
|---|---|
| ADVICS | A7R063 |
| BENDIX Braking | BDM1047 |
| Dr!ve+ | DP1010.11.1920 |
| HELLA | 8DT 355, 301-501 |
| HELLA PAGID | 8DT 355, 301-501 |
| IAP QUALITY PARTS | 710-17091 |
| JAPOCAT | MBD-2T04 |
| KAGER | 36-0299 |
| KAVO PARTS | BD-9631 |
| LPR | 7D0216 |
| MAXGEAR | 19-3712 |
| MINTEX | MBD230 |
| NIPPARTS | J3402023 |
| NPS | T340A23 |
| PAGID | 62926 |
| PROTECHNIC | PRT044 |
| SAMKO | S70216 |
| TOYOTA | 42431-02030 |
| TRISCAN | 8120 13225 |
