Bosch
0 986 010 600 Starter
SKU / part number
Bosch 0 986 010 600 Starter. Part no. 0-986-010-600. Check specifications, vehicle fitment and references below.

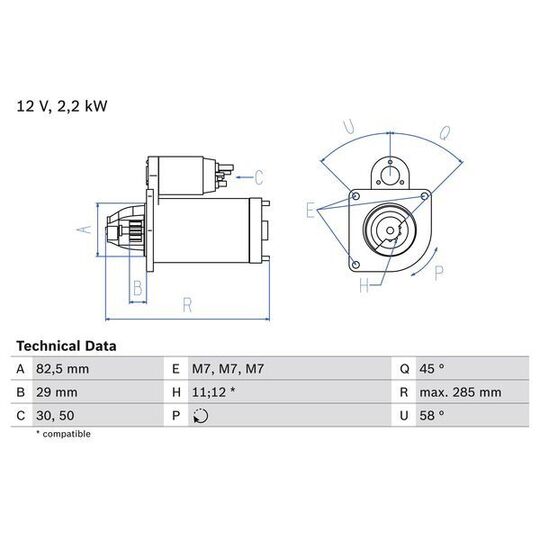

Specifications
Length
285 | mm
Voltage
12 V
Rated Power
2.2 kW
Number of mounting bores
3
Number of threaded holes
3
Number of Teeth
12
Number of Teeth
11
Clamp
50
Flange Diameter
82.5 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
29 mm
Starter Type
Self-supporting
Thread Size
M7
Thread Size 1
M7x1
Thread Size 2
M7x1
Position/Degree
links
Mounting Angle
58 degrees
Jaw opening angle measurement
45 Degree
Mounting bore angle measurement
58 degree
Trade Numbers
1060
Shipping details
Weight
6.419 Kg
Customs Code
851140
Country of Origin
Germany
Cross-Reference Numbers
| BOSCH | 0 001 218 003, 0 001 218 020, 0 001 218 620, 0 986 010 601, 0 986 010 603 |
|---|---|
| CITROËN | 5802 85, 5802 93, 5802 L5, 5802 P7, 95 495 849, 95 583 854 80, 95 619 197 |
| HC-PARTS | CS361 |
| HELLA | 8EA 726 109-001 |
| LUCAS ELECTRICAL | LRS00650, LRS00981, LRS650, LRS981 |
| MAGNETI MARELLI | 943251099, MSR361 |
| PEUGEOT | 5802 85, 5802 93, 5802 L5, 5802 P7, 95 495 849, 95 583 854 80, 95 619 197 |
| VALEO | 433326, D9R90 |
