Bosch
0 986 010 980 Starter
SKU / part number
Bosch 0 986 010 980 Starter. Part no. 0-986-010-980. Check specifications, vehicle fitment and references below.

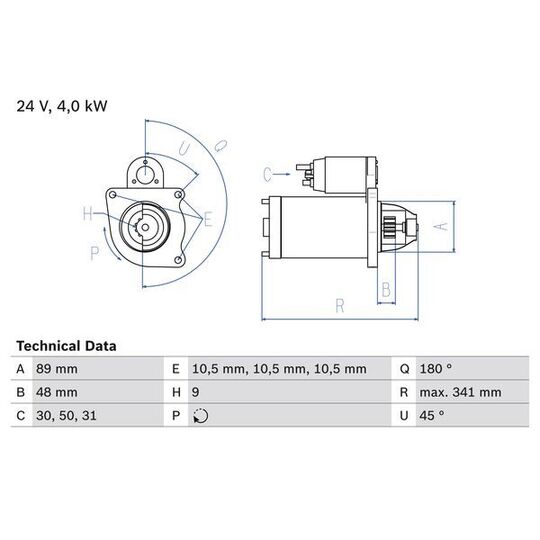

Specifications
Length
341 | mm
Voltage
24 V
Rated Power
4 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
9
Clamp
30
Clamp
50
Clamp
31
Flange Diameter
89 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
48 mm
Starter Type
Self-supporting
Bore Diameter
10.5 mm
Bore Diameter 2
10.5 mm
Bore Ø 3
10.5 mm
Position/Degree
rechts
Mounting Angle
45 degrees
Jaw opening angle measurement
180 Degree
Mounting bore angle measurement
45 degree
Trade Numbers
1098
Shipping details
Weight
14.023 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| BOSCH | 0 001 360 061, 0 001 368 017, 0 001 368 063, 0 001 368 074, 0 986 010 983, 1 986 S10 104 |
|---|---|
| DELCO REMY | 19024268, DRS0980 |
| DENSO | 1280007600, 1280007603 |
| HC-PARTS | CS391 |
| HELLA | 8EA 726 139-001 |
| LUCAS ELECTRICAL | LRS00925, LRS925 |
| MAGNETI MARELLI | MSR701 |
| METAL LEVE | MS 325 |
| VALEO | 455536 |
| VOLVO | 1676822, 466772, 5001784, 5003009 |
