Bosch
0 986 011 160 Starter
SKU / part number
Bosch 0 986 011 160 Starter. Part no. 0-986-011-160. Check specifications, vehicle fitment and references below.

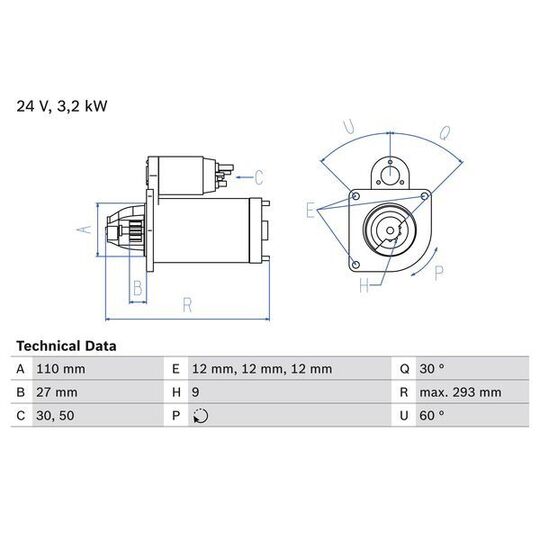

Specifications
Length
293 | mm
Voltage
24 V
Rated Power
3.2 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
9
Clamp
50
Clamp
30
Flange Diameter
110 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
27 mm
Starter Type
Self-supporting
Bore Diameter
12 mm
Bore Diameter 2
12 mm
Bore Ø 3
12 mm
Position/Degree
links
Mounting Angle
60 degrees
Jaw opening angle measurement
30 Degree
Mounting bore angle measurement
60 degree
Trade Numbers
1116
Shipping details
Weight
13.346 Kg
Customs Code
851140
Country of Origin
Germany
Cross-Reference Numbers
| BOSCH | 0 001 363 111, 0 986 011 161, 0 986 011 163 |
|---|---|
| DELCO REMY | 19024242, DRS1160 |
| EFEL | 12080 |
| FIAT | 4691200, 4706931, 4744841, 4752403, 4807377, 6706931, 77080560, 77080561 |
| HC-PARTS | CS231 |
| HELLA | 8EA 726 030-001 |
| IVECO | 42498142, 4744841, 4807377, 504038038 |
| LANCIA | 4691200, 4706931, 4744841, 4752403, 4807377, 6706931, 77080560, 77080561 |
| LETRIKA | 11130216, AZJ3520, AZJ3542 |
| MAGNETI MARELLI | 632 172 01, 632 172 25, 632 172 26, 943217226, MSN237, MT72A, MT72AA, MT72AB |
| VALEO | 455520 |
