Bosch
0 986 011 310 Starter
SKU / part number
Bosch 0 986 011 310 Starter. Part no. 0-986-011-310. Check specifications, vehicle fitment and references below.

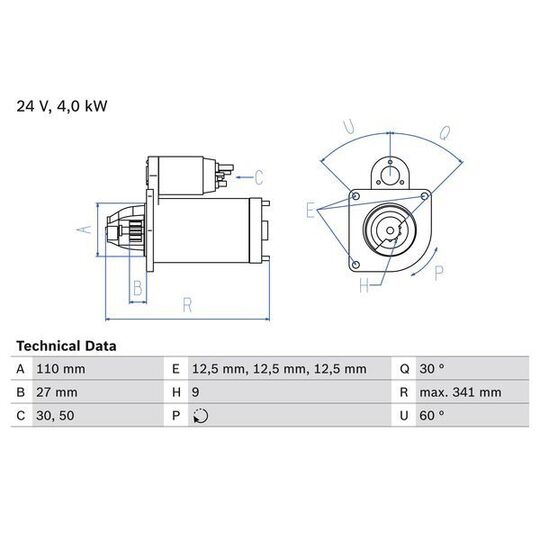

Specifications
Length
341 | mm
Voltage
24 V
Rated Power
4 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
9
Clamp
50
Clamp
30
Flange Diameter
110 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
27 mm
Starter Type
Self-supporting
Bore Diameter
12.5 mm
Bore Diameter 2
12.5 mm
Bore Ø 3
12.5 mm
Position/Degree
links
Mounting Angle
60 degrees
Jaw opening angle measurement
30 Degree
Mounting bore angle measurement
60 degree
Trade Numbers
1131
Shipping details
Weight
14.44 Kg
Customs Code
851140
Country of Origin
Germany
Cross-Reference Numbers
| BOSCH | 0 001 360 015, 0 001 360 043, 0 001 368 019, 0 986 011 311 |
|---|---|
| DELCO REMY | 19024231, DRS1310 |
| FIAT | 4169095, 4231018, 4269114, 4682999, 4692477, 4699704, 4701920, 4737754, 4755108, 4807378, 77040560, 77040561, 7740560, 77414430, 77414431, 77444430, 77445430 |
| FIATALLIS | 4755108 |
| HC-PARTS | CS232 |
| HELLA | 8EA 726 031-001 |
| IVECO | 4172004, 4187587, 4231016, 4232191, 4735444, 4763995, 4807378 |
| LANCIA | 4231018, 4269114, 4682999, 4692477, 4699704, 4701920, 4737754, 4755108, 4807378, 77040560, 77040561, 7740560, 77414430, 77414431, 77444430, 77445430 |
| LUCAS ELECTRICAL | LRS00837, LRS837 |
| MAGIRUS-DEUTZ | 04682999, 468 2999 |
| MAGNETI MARELLI | 632 167 01, 632 167 25, 632 167 26, 632 167 27, 632 167 31, 632 167 47, 632 167 48, 632 245 80, 943216731, MSN213, MT67A, MT67AA, MT67AB, MT67AC, MT67AD |
| VALEO | 455517 |
