Bosch
0 986 011 830 Starter
SKU / part number
Bosch 0 986 011 830 Starter. Part no. 0-986-011-830. Check specifications, vehicle fitment and references below.

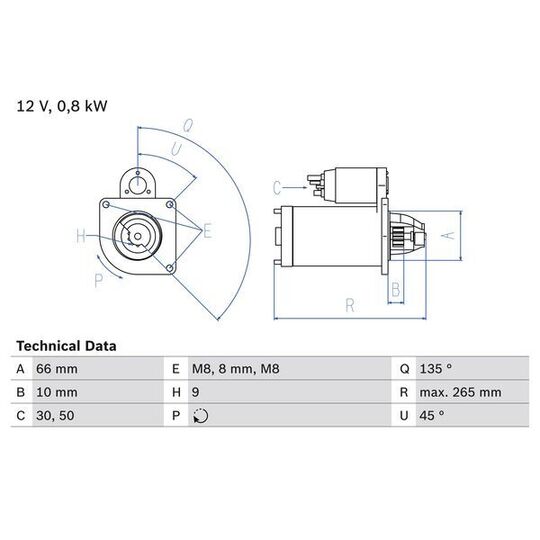

Specifications
Length
265 | mm
Voltage
12 V
Rated Power
0.8 kW
Number of mounting bores
1
Number of threaded holes
2
Number of Teeth
9
Clamp
50
Clamp
30
Flange Diameter
66 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
10 mm
Starter Type
Self-supporting
Thread Size
M8
Thread Size 2
M8x1.25
Bore Diameter 2
8 mm
Position/Degree
rechts
Mounting Angle
45 degrees
Jaw opening angle measurement
135 Degree
Mounting bore angle measurement
45 degree
Trade Numbers
1183
Shipping details
Weight
5.072 Kg
Customs Code
851140
Country of Origin
China
Cross-Reference Numbers
| BOSCH | 0 986 011 740, 0 986 011 741, 0 986 011 748, 0 986 011 831, 0 986 011 838, 9 000 141 111, 9 000 141 112, 9 000 330 910 |
|---|---|
| DELCO REMY | DRS1831 |
| FEMSA | MTS1210 |
| HC-PARTS | CS315 |
| HELLA | 8EA 726 066-001 |
| LUCAS ELECTRICAL | LRS00121, LRS00463, LRS121, LRS463 |
| MAGNETI MARELLI | 943251114, MSR370 |
| RENAULT | 77 00 572 689, 77 00 650 287, 77 00 694 096, 77 00 750 305, 77 00 750 306, 77 01 349 591, 77 01 351 523, 77 01 499 468, 77 01 499 649, 77 02 046 211, 77 02 102 137 |
| VALEO | 310218A, 432547, 432552, 433246, 433247, 453028, 499007, 534032, 534047, 6211, 6221, D9E20, D9E22, D9E278, D9E34, D9E35, D9E46, D9E55, D9E68, D9E78, D9E79, ND068 |
