Bosch
0 986 013 050 Starter
SKU / part number
Bosch 0 986 013 050 Starter. Part no. 0-986-013-050. Check specifications, vehicle fitment and references below.

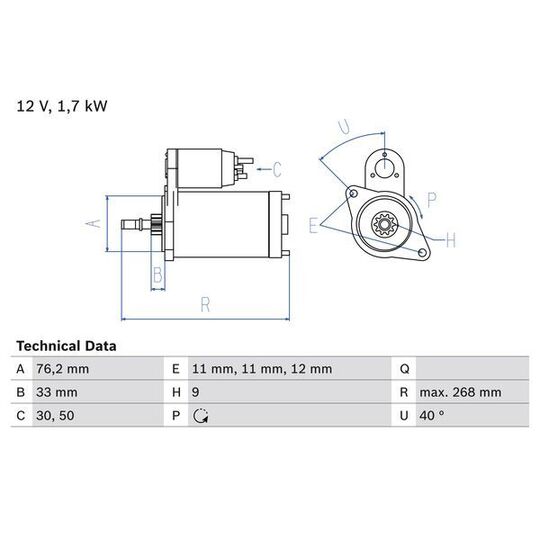

Specifications
Length
268 | mm
Voltage
12 V
Rated Power
1.7 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
9
Clamp
50
Clamp
30
Flange Diameter
76.2 mm
Rotation Direction
Anticlockwise rotation
Pinion Rest Position
33 mm
Starter Type
Non self-supporting
Bore Diameter
11 mm
Bore Diameter 2
11 mm
Bore Ø 3
12 mm
Position/Degree
links
Mounting Angle
40 degrees
Mounting bore angle measurement
40 degree
Trade Numbers
1305
Shipping details
Weight
5.039 Kg
Customs Code
851140
Country of Origin
Germany
Cross-Reference Numbers
| BOSCH | 0 001 110 001, 0 001 110 002, 0 001 110 014, 0 001 110 015, 0 001 110 133, 0 001 110 134, 0 001 117 008 |
|---|---|
| DELCO REMY | DRS3050 |
| HC-PARTS | CS295 |
| HELLA | 8EA 726 055-001 |
| LETRIKA | 11130722 |
| LUCAS ELECTRICAL | LRS00528, LRS528 |
| MAGNETI MARELLI | 943251655, MSR483 |
| VALEO | 436020 |
| VW | 068 911 023 G, 068 911 023 GX, 068 911 024 K, 176911023 |
