Bosch
0 986 013 260 Starter
SKU / part number
Bosch 0 986 013 260 Starter. Part no. 0-986-013-260. Check specifications, vehicle fitment and references below.

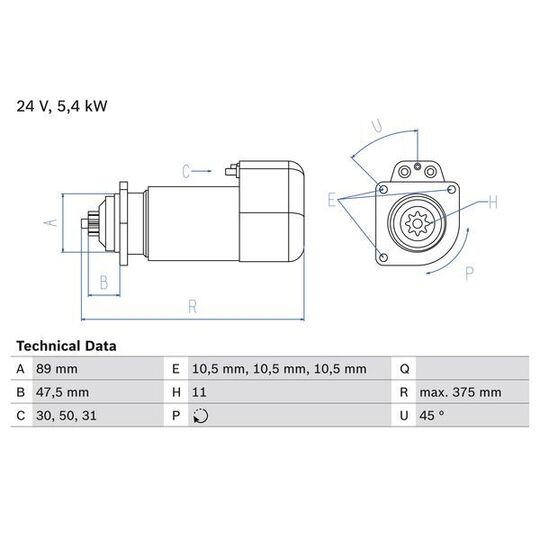

Specifications
Length
375 | mm
Voltage
24 V
Rated Power
5.4 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
11
Clamp
30
Clamp
50
Clamp
31
Flange Diameter
89 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
47.5 mm
Starter Type
Floating pinion
Bore Diameter
10.5 mm
Bore Diameter 2
10.5 mm
Bore Ø 3
10.5 mm
Position/Degree
links
Mounting Angle
45 degrees
Mounting bore angle measurement
45 degree
Trade Numbers
1326
Shipping details
Weight
17.24 Kg
Customs Code
851140
Country of Origin
Germany
Cross-Reference Numbers
| BOSCH | 0 001 415 016, 0 001 416 008, 0 001 416 009, 0 001 416 038, 0 001 416 076, 0 001 416 209, 0 986 013 263 |
|---|---|
| BUTEC | 860504 |
| DELCO REMY | 19024016, 19024099, 85000438, DRS3260 |
| HC-PARTS | CS506 |
| HELLA | 8EA 726 154-001 |
| LIEBHERR | 600 07 33 |
| LUCAS ELECTRICAL | LRS00860, LRS860 |
| MAGNETI MARELLI | 943252190 |
| MAN | 51 26201 7100 |
| STEYR | 81500090049 |
| VOLVO | 465929, 5003027 |
