Bosch

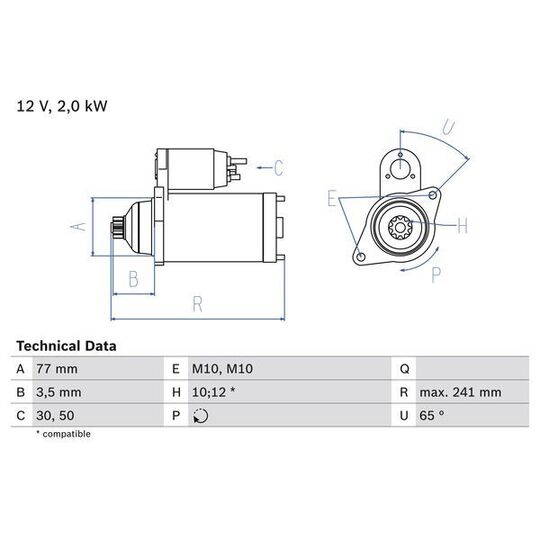

0 986 014 141 Starter
SKU / part number
Bosch 0 986 014 141 Starter. Part no. 0-986-014-141. Check specifications, vehicle fitment and references below.
Specifications
Length
241 | mm
Voltage
12 V
Rated Power
2 kW
Number of mounting bores
0
Number of threaded holes
2
Number of Teeth
10
Number of Teeth
13
Number of Teeth
12
Clamp
30,50
Flange Diameter
77 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
3.5 mm
Starter Type
Floating pinion
Thread Size
M10x1.5
Thread Size 1
M10x1.5
Position/Degree
rechts
Mounting Angle
65 degrees
Mounting bore angle measurement
65 degree
Trade Numbers
1414
Shipping details
Weight
6.184 Kg
Customs Code
851140
Country of Origin
China
Cross-Reference Numbers
| DELCO REMY | DRS3036 |
|---|---|
| HC-PARTS | JS344, JS769 |
| HELLA | 8EA 726 436-001, 8EA 731 804-001 |
| HYUNDAI | 36100 42010, 36100 42011, 36100 42050 |
| LUCAS ELECTRICAL | LRS00439, LRS00617, LRS439, LRS617 |
| MITSUBA | M002T51685, M002T56171, M002T56181, M002T56182, M002T56185, M002T57271, M002T57273, M002T57771, M002T60171, M002T60172, M002T61071, M002T62971, M003T61071, M2T51685, M2T56171, M2T56181, M2T56182, M2T56185, M2T57271, M2T57273, M2T57771, M2T60171, M2T60172, M2T61071, M2T62971, M3T61071 |
| MITSUBISHI | 3610042011, 3610042050, MD050200, MD050205, MD061154, MD069166, MD070934, MD072654, MD084414, MD095865, MD156986, MD156989, MD162975, MD164975, MD164977, MD191433, MD191433R, MD191435 |
| PROTON | MD191433 |
| VALEO | 455905, MG120413 |
