Bosch
0 986 014 940 Starter
SKU / part number
Bosch 0 986 014 940 Starter. Part no. 0-986-014-940. Check specifications, vehicle fitment and references below.

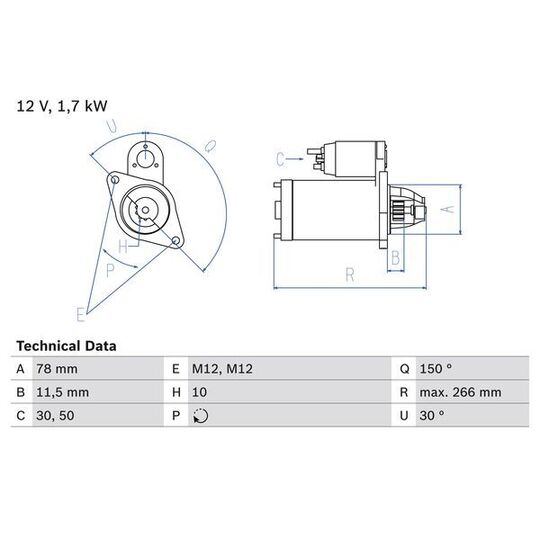

Specifications
Length
266 | mm
Voltage
12 V
Rated Power
1.7 kW
Number of mounting bores
0
Number of threaded holes
2
Number of Teeth
10
Clamp
50
Clamp
30
Flange Diameter
78 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
11.5 mm
Starter Type
Self-supporting
Thread Size
M12
Thread Size 1
M12x1.75
Position/Degree
links
Mounting Angle
30 degrees
Jaw opening angle measurement
150 Degree
Mounting bore angle measurement
30 degree
Trade Numbers
1494
Shipping details
Weight
5.356 Kg
Customs Code
851140
Country of Origin
Germany
Cross-Reference Numbers
| BOSCH | 0 001 110 039, 0 001 110 053, 0 001 110 113, 0 986 014 943, 0 986 016 823, B 001 117 050, B 001 117 148, B 001 117 149 |
|---|---|
| DELCO REMY | DRS4940 |
| HC-PARTS | CS583 |
| HELLA | 8EA 726 207-001 |
| LUCAS ELECTRICAL | LRS01291, LRS1291 |
| MAGNETI MARELLI | 943251451 |
| MERCEDES-BENZ | 003 151 79 01, 003 151 79 01 80, 004 151 37 01, 004 151 37 01 80, 004 151 78 01, 004 151 78 01 80, A 003 151 79 01, A 003 151 79 01 80, A 004 151 37 01, A 004 151 37 01 80, A 004 151 78 01, A 004 151 78 01 80 |
| VALEO | 458488 |
