Bosch
0 986 016 530 Starter
SKU / part number
Bosch 0 986 016 530 Starter. Part no. 0-986-016-530. Check specifications, vehicle fitment and references below.

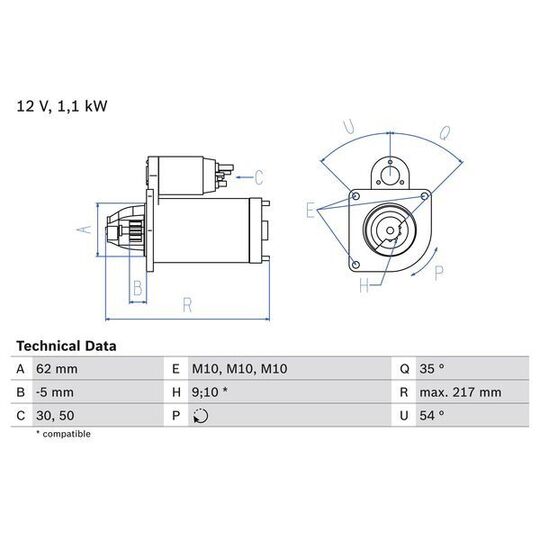

Specifications
Length
217 | mm
Voltage
12 V
Rated Power
1.1 kW
Number of mounting bores
0
Number of threaded holes
3
Number of Teeth
10
Number of Teeth
9
Clamp
50
Clamp
30
Flange Diameter
62 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
-5 mm
Starter Type
Self-supporting
Thread Size
M10
Thread Size 1
M10x1.5
Thread Size 2
M10x1.5
Position/Degree
links
Mounting Angle
54 degrees
Jaw opening angle measurement
35 Degree
Mounting bore angle measurement
54 degree
Trade Numbers
1653
Shipping details
Weight
3.56 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| BOSCH | 0 001 107 019, 0 001 107 050, 0 001 107 063, 0 986 016 531, 0 986 016 533, 1 986 S00 655 |
|---|---|
| CITROËN | 5802 88, 5802 E1, 5802 E4, 5802 ES, 5802 J0, 5802 L6, 5802 Q2, 5802 R8, 95 656 487, 95 667 754, 96 014 184, 96 035 033, 96 035 034, 96 147 592, 96 155 198 |
| DELCO REMY | DRS2343, DRS3113, DRS6530 |
| FIAT | 1319121080, 71716554, 9613015980, 961323028, 9613230280, 9615519880, 9619310280, 9624291380, K1319121080, K9613015980, K9613230280, K9615519880, K9619310280, K9624291380 |
| HC-PARTS | CS566 |
| HELLA | 8EA 726 191-001 |
| LANCIA | 961323028, 9615519880, K9615519880 |
| LUCAS ELECTRICAL | LRS00749, LRS749 |
| MAGNETI MARELLI | 063521070630, 943251488, MSN2015, MSR670 |
| PEUGEOT | 5802 88, 5802 E1, 5802 E4, 5802 ES, 5802 J0, 5802 L6, 5802 Q2, 5802 R8, 5802 T6, 95 656 487, 95 667 754, 96 014 184, 96 035 033, 96 035 034, 96 147 592, 96 155 198 |
| VALEO | 432592, 432636, 433022, 436064, 436065, 455512, 499029, D6RA16, D6RA161, D6RA18, D6RA23, D6RA38, D6RA66, D6RA661, D6RA8, ND111 |
