0 986 016 570 Starter
SKU / part number
Bosch 0 986 016 570 Starter. Part no. 0-986-016-570. Check specifications, vehicle fitment and references below.

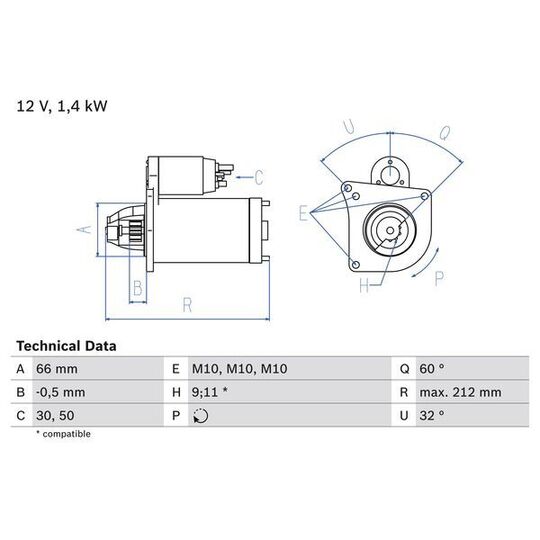

Specifications
Length
212 | mm
Voltage
12 V
Rated Power
1.4 kW
Number of mounting bores
0
Number of threaded holes
3
Number of Teeth
11
Number of Teeth
9
Clamp
50
Clamp
30
Flange Diameter
66 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
-0.5 mm
Starter Type
Self-supporting
Thread Size
M10
Thread Size 1
M10x1.5
Thread Size 2
M10x1.5
Position/Degree
links
Mounting Angle
32 degrees
Jaw opening angle measurement
60 Degree
Mounting bore angle measurement
32 degree
Trade Numbers
1657
Shipping details
Weight
3.642 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| BOSCH | 0 001 108 022, 0 001 108 051, 0 001 108 143 |
|---|---|
| DELCO REMY | DRS3738, DRS6570 |
| HC-PARTS | CS784 |
| HELLA | 8EA 731 774-001 |
| LUCAS ELECTRICAL | LRS01304, LRS01537, LRS01559, LRS01596, LRS1304, LRS1537, LRS1559, LRS1596 |
| MAGNETI MARELLI | 943251915, MSR5000 |
| RENAULT | 77 00 113 208, 77 00 860 915, 77 01 352 050, 77 01 352 350 |
| VALEO | 455936, D6RA101, D6RA104 |
| VOLVO | 8111572 |
