Bosch
0 986 016 730 Starter
SKU / part number
Bosch 0 986 016 730 Starter. Part no. 0-986-016-730. Check specifications, vehicle fitment and references below.

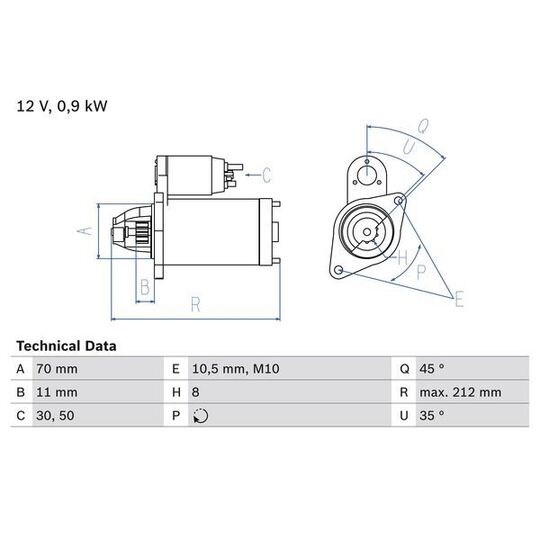

Specifications
Length
212 | mm
Voltage
12 V
Rated Power
1.1 kW
Number of mounting bores
2
Number of threaded holes
1
Number of Teeth
8
Clamp
30
Flange Diameter
70 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
10.94 mm
Starter Type
Self-supporting
Thread Size 1
M10x1.5
Bore Diameter
10.5 mm
Position/Degree
rechts
Mounting Angle
35 degrees
Jaw opening angle measurement
45 Degree
Mounting bore angle measurement
35 degree
Trade Numbers
1673
Shipping details
Weight
4.328 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| BOSCH | 0 001 107 038, 0 001 107 092, 0 001 112 017, 0 001 116 008, 1 986 S01 039, F 042 001 147 |
|---|---|
| DELCO REMY | DRS3478, DRS6730 |
| HC-PARTS | JS1016, JS1079, JS1307 |
| HELLA | 8EA 737 313-001, 8EA 737 361-001, 8EA 738 139-001 |
| LUCAS ELECTRICAL | LRS02080, LRS2080, LRT00125, LRT125 |
| MITSUBA | M000T84585, M002T42881, M0T84585, M2T42881 |
| NISSAN | 23300 1F710, 23300 1F715, 23300 1F770, 23300 1F771, 23300 1F772, 23300 41B71, 23300 99B10, 23300 99B16, 23300 9W200, 23300 AX000, 23300 AX002, 23300 AX010, 233001F77A, 233001F77B, 233001F77C, 23300AX00A, 23300AX01A |
| VALEO | 455985, 458170, 458463, D7E30, D7E32, D7E40, D7E400, D7E42, TS8E3, TS8E5 |
