Bosch
0 986 016 780 Starter
SKU / part number
Bosch 0 986 016 780 Starter. Part no. 0-986-016-780. Check specifications, vehicle fitment and references below.

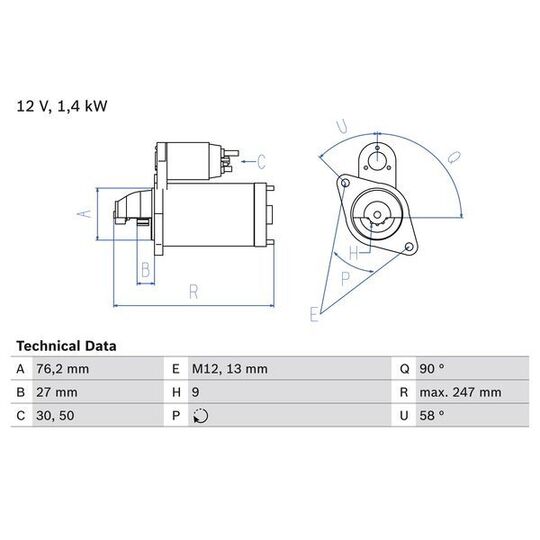

Specifications
Length
247 | mm
Voltage
12 V
Rated Power
1.4 kW
Number of mounting bores
1
Number of threaded holes
1
Number of Teeth
9
Clamp
50
Clamp
30
Flange Diameter
76.2 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
27 mm
Starter Type
Self-supporting
Thread Size
M12
Bore Diameter 2
13 mm
Position/Degree
links
Mounting Angle
58 degrees
Jaw opening angle measurement
90 Degree
Mounting bore angle measurement
58 degree
Trade Numbers
1678
Shipping details
Weight
4.385 Kg
Customs Code
851140
Country of Origin
Germany
Cross-Reference Numbers
| AUDI | 078 911 023 A, 078911023 |
|---|---|
| BOSCH | 0 001 108 113, 0 001 108 114 |
| DELCO REMY | DRS6780 |
| HC-PARTS | CS725 |
| HELLA | 8EA 731 769-001 |
| LUCAS ELECTRICAL | LRS00971, LRS971 |
| MAGNETI MARELLI | 632 234 38, 943223438, MSR335 |
| VALEO | 458464 |
| VW | 078 911 023 A, 078 911 023 X, 078911023 |
