Bosch
0 986 017 541 Starter
SKU / part number
Bosch 0 986 017 541 Starter. Part no. 0-986-017-541. Check specifications, vehicle fitment and references below.

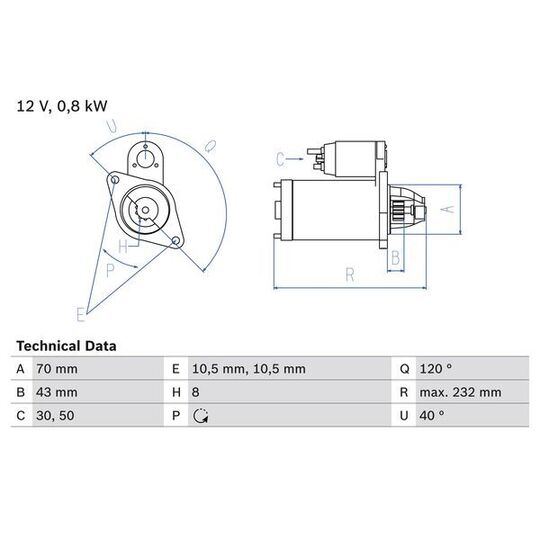

Specifications
Length
232 | mm
Voltage
12 V
Rated Power
0.8 kW
Number of mounting bores
2
Number of threaded holes
0
Number of Teeth
8
Clamp
50
Clamp
30
Flange Diameter
70 mm
Rotation Direction
Anticlockwise rotation
Pinion Rest Position
43 mm
Starter Type
Self-supporting
Bore Diameter
10.5 mm
Bore Diameter 2
10.5 mm
Position/Degree
links
Mounting Angle
40 degrees
Jaw opening angle measurement
120 Degree
Mounting bore angle measurement
40 degree
Trade Numbers
1754
Shipping details
Weight
3.419 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| BOSCH | 9 007 045 016 |
|---|---|
| DELCO REMY | DRS3357 |
| HC-PARTS | JS1301, JS759 |
| HELLA | 8EA 731 794-001, 8EA 738 062-001 |
| HITACHI | S114535, S114535A, S114569, S114569A, S114569B, S114630, S114769, S114769A, S114769H |
| LUCAS ELECTRICAL | LRS00793, LRS01220, LRS1220, LRS793 |
| MITSUBA | M000T80281A, M000T80285, M000T80285A, M001T77281, M001T77285, M002T49283, M003T37783, M0T80281A, M0T80285, M0T80285A, M1T77281, M1T77285, M2T49283, M3T37783 |
| NISSAN | 23300 1M210, 23300 1M211, 23300 1M212, 23300 1M215, 23300 1M216, 23300 70Y00, 23300 70Y01, 23300 70Y10, 23300 73C00, 23300 73C10, 23300 74Y00, 23300 74Y10 |
| VALEO | 438159, 458173, TM000A33801 |
