Bosch
0 986 017 880 Starter
SKU / part number
Bosch 0 986 017 880 Starter. Part no. 0-986-017-880. Check specifications, vehicle fitment and references below.

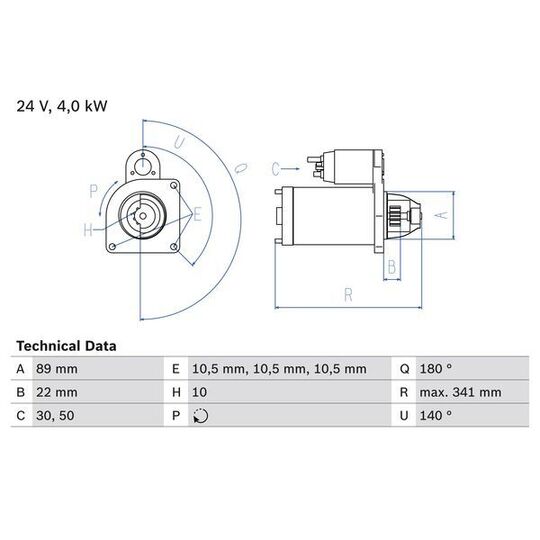

Specifications
Length
341 | mm
Voltage
24 V
Rated Power
4 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
10
Clamp
50
Clamp
30
Flange Diameter
89 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
22 mm
Starter Type
Self-supporting
Bore Diameter
10.5 mm
Bore Diameter 2
10.5 mm
Bore Ø 3
10.5 mm
Position/Degree
rechts
Mounting Angle
140 degrees
Jaw opening angle measurement
180 Degree
Mounting bore angle measurement
140 degree
Trade Numbers
1788
Shipping details
Weight
13.84 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| BOSCH | 0 001 368 082, 0 986 017 883 |
|---|---|
| DELCO REMY | 19024265, DRS7880 |
| HC-PARTS | CS1261 |
| HELLA | 8EA 738 022-001 |
| IVECO | 4854185 |
| LETRIKA | 11131086, AZJ3375 |
| LUCAS ELECTRICAL | LRS01937, LRS1937 |
| MAGNETI MARELLI | 063523680820, 943252065010, MSN2057, MSR682 |
| UNIC-SIMCA | 4 854 185 |
| VALEO | 453052, 458254 |
