Bosch
0 986 018 500 Starter
SKU / part number
Bosch 0 986 018 500 Starter. Part no. 0-986-018-500. Check specifications, vehicle fitment and references below.

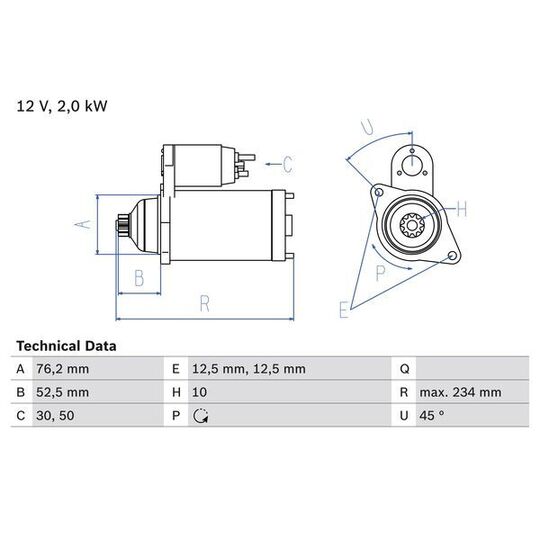

Specifications
Length
234 | mm
Voltage
12 V
Rated Power
2 kW
Number of mounting bores
2
Number of threaded holes
0
Number of Teeth
10
Clamp
50
Clamp
30
Flange Diameter
76.2 mm
Rotation Direction
Anticlockwise rotation
Pinion Rest Position
52.5 mm
Starter Type
Floating pinion
Bore Diameter
12.5 mm
Bore Diameter 2
12.5 mm
Position/Degree
links
Mounting Angle
45 degrees
Mounting bore angle measurement
45 degree
Trade Numbers
1850
Shipping details
Weight
4.693 Kg
Customs Code
851140
Country of Origin
Germany
Cross-Reference Numbers
| BOSCH | 0 001 125 021, 0 001 125 022, 0 001 125 051, 0 001 125 052, 1 986 S00 813 |
|---|---|
| DELCO REMY | 918500, DRS8500 |
| HC-PARTS | CS1200 |
| HELLA | 8EA 737 856-001 |
| LUCAS ELECTRICAL | LRT00221, LRT221 |
| SEAT | 02T 911 023 H |
| SKODA | 02T 911 023 C, 02T 911 023 H |
| VALEO | 458586 |
| VW | 02T 911 023 C, 02T 911 023 CX, 02T 911 023 H, 02T 911 023 HX |
