Bosch
0 986 019 301 Starter
SKU / part number
Bosch 0 986 019 301 Starter. Part no. 0-986-019-301. Check specifications, vehicle fitment and references below.

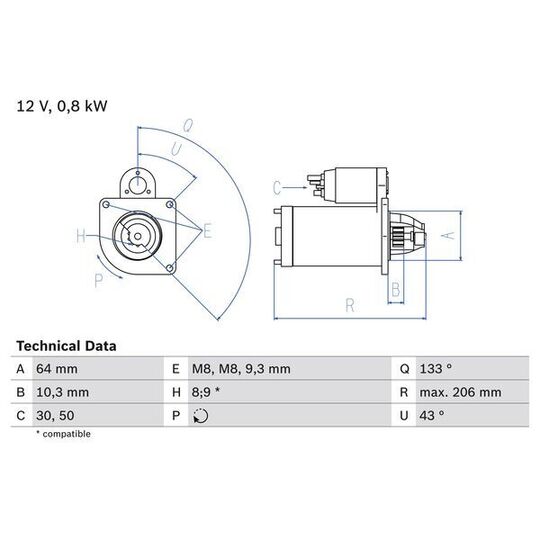

Specifications
Length
206 | mm
Voltage
12 V
Rated Power
0.8 kW
Number of mounting bores
1
Number of threaded holes
2
Number of Teeth
9
Number of Teeth
8
Clamp
50
Clamp
30
Flange Diameter
64 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
10.3 mm
Starter Type
Self-supporting
Thread Size
M8
Thread Size 1
M8x1.25
Bore Ø 3
9.3 mm
Position/Degree
rechts
Mounting Angle
43 degrees
Jaw opening angle measurement
133 Degree
Mounting bore angle measurement
43 degree
Trade Numbers
1930
Shipping details
Weight
4.334 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| BOSCH | F 000 AL0 309, F 000 AL0 310 |
|---|---|
| DELCO REMY | DRS0068, DRS3589 |
| FIAT | 46432262, 46465475, 46763530, 46765839, 46796553, 46843092, 55201771 |
| HC-PARTS | CS1125 |
| HELLA | 8EA 737 609-001 |
| LUCAS ELECTRICAL | LRS01474, LRS01556, LRS1474, LRS1556 |
| MAGNETI MARELLI | 631 010 03, 631 010 08, 631 010 22, 631 010 23, 631 020 21, MSN402 |
| MAKO | 63102021 |
