Bosch
0 986 020 411 Starter
SKU / part number

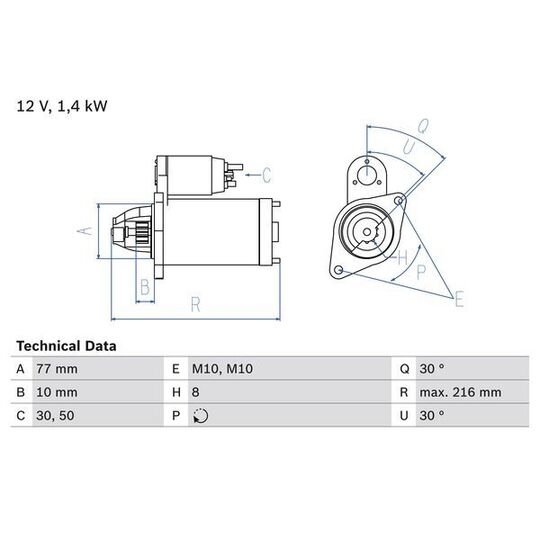

Bosch 0 986 020 411 Starter. Part no. 0-986-020-411. Check specifications, vehicle fitment and references below.
Specifications
Length
216 | mm
Voltage
12 V
Rated Power
1.6 kW
Number of mounting bores
2
Number of threaded holes
2
Number of Teeth
8
Clamp
30
Flange Diameter
77 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
9.62 mm
Starter Type
Self-supporting
Thread Size
M10
Thread Size 1
M10x1.5
Position/Degree
rechts
Mounting Angle
30 degrees
Jaw opening angle measurement
30 Degree
Mounting bore angle measurement
30 degree
Trade Numbers
2041
Shipping details
Weight
3.744 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| DELCO REMY | DRS3913 |
|---|---|
| HC-PARTS | CS1459, JS1313 |
| HELLA | 8EA 738 169-001 |
| LUCAS ELECTRICAL | LRS01472, LRS1472 |
| MITSUBA | M000T20671, M000T20672, M000T81181, M001T84881, M001T84883, M001T84883ZC, M001T84884, M0T20671, M0T20672, M0T81181, M1T84881, M1T84883, M1T84883ZC, M1T84884 |
| MITSUBISHI | 1810A001, MD328235, MD348225, MD356178, MD362910, MN153444 |
