Bosch
0 986 021 630 Starter
SKU / part number
Bosch 0 986 021 630 Starter. Part no. 0-986-021-630. Check specifications, vehicle fitment and references below.

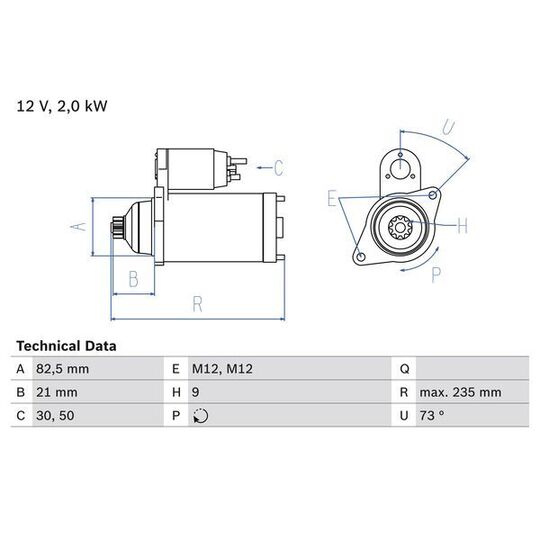

Specifications
Length
235 | mm
Voltage
12 V
Rated Power
2 kW
Number of mounting bores
0
Number of threaded holes
2
Number of Teeth
9
Clamp
30,50
Flange Diameter
82.5 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
21 mm
Starter Type
Floating pinion
Thread Size
M12x1.75
Thread Size 1
M12x1.75
Position/Degree
rechts
Mounting Angle
73 degrees
Mounting bore angle measurement
73 degree
Trade Numbers
2163
Shipping details
Weight
4.861 Kg
Customs Code
851140
Country of Origin
Hungary
Cross-Reference Numbers
| BOSCH | 0 001 125 055, 0 001 125 056, 1 986 S00 815 |
|---|---|
| DELCO REMY | DRT1630 |
| HC-PARTS | CS1435 |
| HELLA | 8EA 738 258-691 |
| LUCAS ELECTRICAL | LRA02327, LRA2327, LRS02327, LRS2327 |
| MERCEDES-BENZ | 646 151 01 01, 646 151 01 01 80, A 646 151 01 01, A 646 151 01 01 80, HVW6461510101 |
| VW | 076 911 023 A, 076 911 023 AX |
