Bosch
0 986 022 810 Starter
SKU / part number
Bosch 0 986 022 810 Starter. Part no. 0-986-022-810. Check specifications, vehicle fitment and references below.

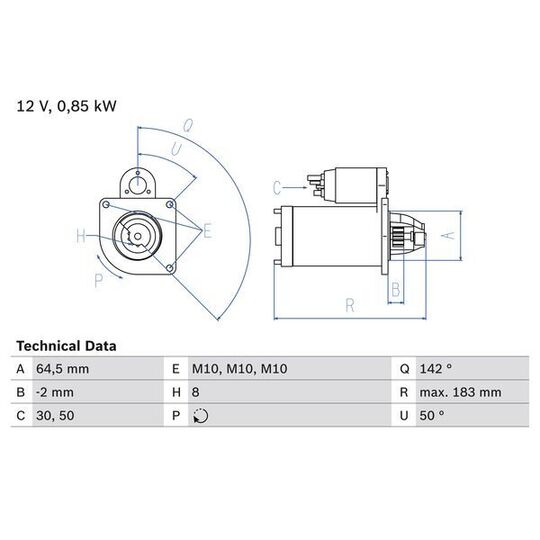

Specifications
Length
183 | mm
Voltage
12 V
Rated Power
0.85 kW
Number of mounting bores
0
Number of threaded holes
3
Number of Teeth
8
Clamp
50
Clamp
30
Flange Diameter
64.5 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
-2 mm
Starter Type
Self-supporting
Thread Size
M10
Thread Size 1
M10x1.5
Thread Size 2
M10x1.5
Position/Degree
rechts
Mounting Angle
50 degrees
Jaw opening angle measurement
142 Degree
Mounting bore angle measurement
50 degree
Trade Numbers
2281
Shipping details
Weight
2.908 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| BOSCH | F 000 CD0 002, F 000 CD0 A02 |
|---|---|
| DACIA | 23 30 011 05R, 82 00 266 777, 82 00 781 939, 82 00 815 083 |
| DELCO REMY | DRS3948 |
| HC-PARTS | CS1276 |
| HELLA | 8EA 738 081-001 |
| LUCAS ELECTRICAL | LRS01566, LRS02483, LRS1566, LRS2483 |
| MITSUBA | M000T46371ZT, M0T46371ZT |
| MITSUBISHI | M000T46371ZT |
| NISSAN | 233001105R, 23300AZ71A |
| RENAULT | 23 30 011 05R, 77 11 135 335, 77 11 135 849, 82 00 182 178, 82 00 266 777, 82 00 781 939, 82 00 815 079, 82 00 815 083 |
| VALEO | 190955, 191434, 192502, 438128, 438163, 458179, D7E27, D7E47, FS10B3, FS10E3, TS10E3 |
