Bosch
0 986 023 120 Starter
SKU / part number
Bosch 0 986 023 120 Starter. Part no. 0-986-023-120. Check specifications, vehicle fitment and references below.

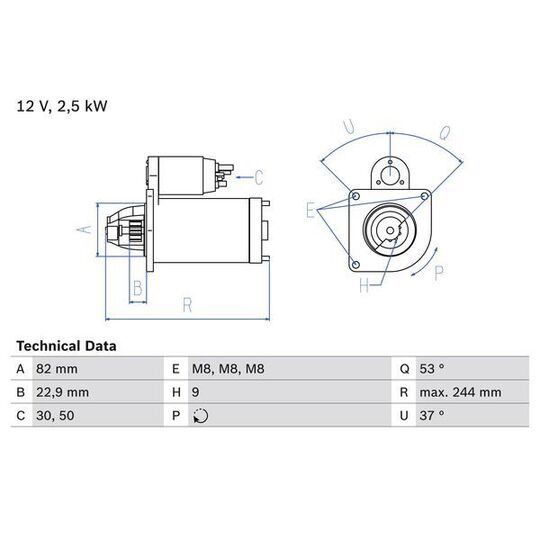

Specifications
Length
244 | mm
Voltage
12 V
Rated Power
2.5 kW
Number of mounting bores
0
Number of threaded holes
3
Number of Teeth
9
Clamp
30,50
Flange Diameter
82 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
22.9 mm
Starter Type
Self-supporting
Thread Size
M8x1.25
Thread Size 1
M8x1.25
Thread Size 2
M8x1.25
Position/Degree
links
Mounting Angle
37 degrees
Jaw opening angle measurement
53 Degree
Mounting bore angle measurement
37 degree
Trade Numbers
2312
Shipping details
Weight
4.32 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| BOSCH | 0 001 109 302, 0 001 109 303, 0 001 109 313, 0 001 109 334, 0 001 109 335, 0 001 109 348, 0 001 109 409, 0 001 109 410, 0 001 109 429, 0 001 109 430, 1 986 S00 734 |
|---|---|
| CEVAM | 3164 |
| CITROËN | 16 112 068 80, 16 143 799 80, 16 164 510 80, 5802 AY, 5802 EE, 5802 FQ |
| DELCO REMY | DRS7983 |
| DRI | 318213092 |
| ELSTOCK | 253490 |
| FIAT | 1349920080, 51779086, 51832958, 518329580, 51984358, 55779086, 71789745, 71794196, 71795571, K1349920080 |
| FRIESEN | 8080182 |
| HC-PARTS | CS1449 |
| IVECO | 5801440013 |
| LUCAS ELECTRICAL | LRS02318, LRS2318 |
| PEUGEOT | 16 112 068 80, 16 143 799 80, 5802 AY, 5802 EE, 5802 FQ |
