Bosch
0 986 023 470 Starter
SKU / part number
Bosch 0 986 023 470 Starter. Part no. 0-986-023-470. Check specifications, vehicle fitment and references below.

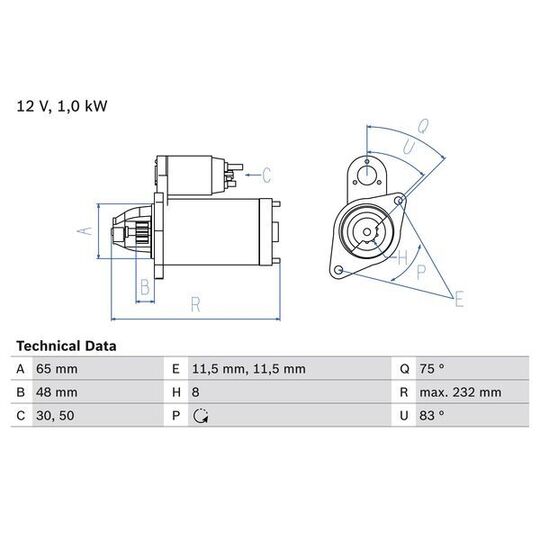

Specifications
Length
232 | mm
Voltage
12 V
Rated Power
1 kW
Number of mounting bores
2
Number of threaded holes
0
Number of Teeth
8
Clamp
30
Flange Diameter
65 mm
Rotation Direction
Anticlockwise rotation
Pinion Rest Position
48 mm
Starter Type
Self-supporting
Bore Diameter
11.5 mm
Bore Diameter 2
11.5 mm
Position/Degree
rechts
Mounting Angle
83 degrees
Jaw opening angle measurement
75 Degree
Mounting bore angle measurement
83 degree
Trade Numbers
2347
Shipping details
Weight
3.896 Kg
Customs Code
851140
Country of Origin
Germany
Cross-Reference Numbers
| DENSO | 2280009270 |
|---|---|
| HC-PARTS | JS1366 |
| HELLA | 8EA 738 258-441 |
| LUCAS ELECTRICAL | LRS00967, LRS01966, LRS02069, LRS02381, LRS1966, LRS2069, LRS2381, LRS967 |
| MITSUBA | M000T30471, M000T30475, M000T81681, M000T83981, M001T77181, M003T43181, M0T30471, M0T30475, M0T81681, M0T83981, M1T77181, M3T43181 |
| SUBARU | 23300 AA270, 23300 AA280, 23300 AA380, 23300 AA381, 23300 AA420, 23300 AA450, 23300 AA560 |
| VALEO | 455919 |
