Bosch
0 986 023 480 Starter
SKU / part number
Bosch 0 986 023 480 Starter. Part no. 0-986-023-480. Check specifications, vehicle fitment and references below.

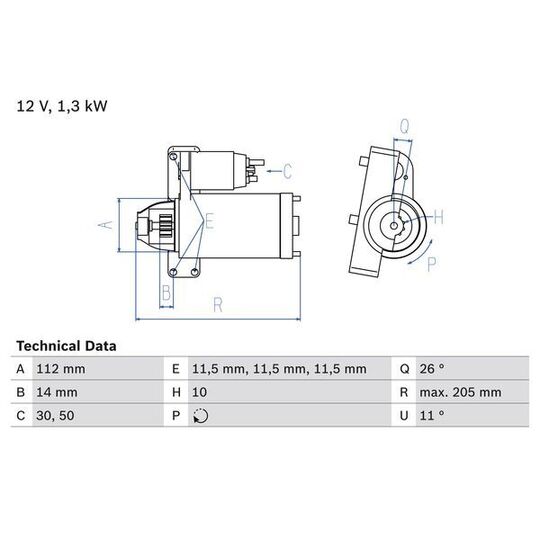

Specifications
Length
205 | mm
Voltage
12 V
Rated Power
1.3 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
10
Clamp
50
Clamp
30
Flange Diameter
112 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
14 mm
Starter Type
Self-supporting
Bore Diameter
11.5 mm
Bore Diameter 2
11.5 mm
Bore Ø 3
11.5 mm
Position/Degree
rechts
Mounting Angle
11 degrees
Jaw opening angle measurement
26 Degree
Mounting bore angle measurement
11 degree
Trade Numbers
2348
Shipping details
Weight
3.693 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| CITROËN | 5802 CZ, 5802 W6, 5802 X7, 5802 X8 |
|---|---|
| DELCO REMY | DRS3737 |
| FIAT | 9635501280, K9635501280 |
| HC-PARTS | CS1290 |
| HELLA | 8EA 738 135-001 |
| LANCIA | 9635501280, K9635501280 |
| LUCAS ELECTRICAL | LRS01554, LRS1554 |
| PEUGEOT | 5802 CZ, 5802 W6, 5802 X7, 5802 X8, 96 355 012 80 |
| RENAULT | 820053977 |
| VALEO | 438087, 455956, D6RA107, D6RA70, D6RAP404 |
