Bosch
0 986 023 560 Starter
SKU / part number
Bosch 0 986 023 560 Starter. Part no. 0-986-023-560. Check specifications, vehicle fitment and references below.

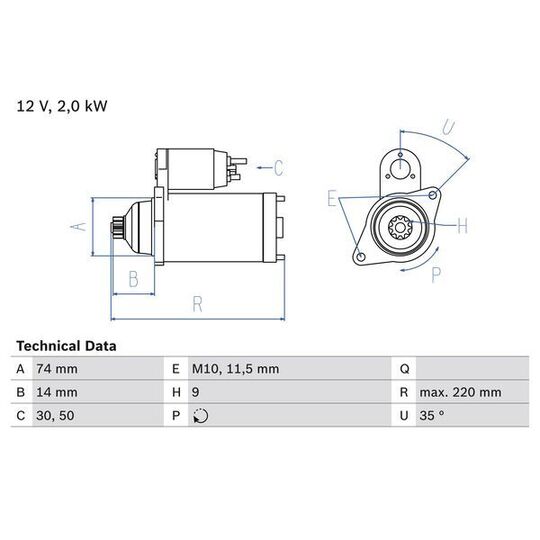

Specifications
Length
220 | mm
Voltage
12 V
Rated Power
2 kW
Number of mounting bores
2
Number of threaded holes
1
Number of Teeth
9
Clamp
30
Flange Diameter
74 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
14.21 mm
Starter Type
Floating pinion
Thread Size
M10
Bore Diameter 2
11.5 mm
Position/Degree
rechts
Mounting Angle
35 degrees
Mounting bore angle measurement
35 degree
Trade Numbers
2356
Shipping details
Weight
5.118 Kg
Customs Code
851140
Country of Origin
Ukraine
Cross-Reference Numbers
| BMW | 12 41 7 791 335 |
|---|---|
| BOSCH | 1 986 S00 986 |
| DENSO | 4280000500, 4280001280, 4280002730, 4280005470, DSN926, DSN937 |
| HC-PARTS | JS1358 |
| HELLA | 8EA 738 258-401 |
| LUCAS ELECTRICAL | LRS01965, LRS02193, LRS1965, LRS2193 |
| MINI | 12 41 7 791 335 |
| TOYOTA | 28100 0N031, 28100 33040, 28100 33070, 28100 33071, 28100 33080, 281000W080 |
