Bosch
0 986 025 190 Starter
SKU / part number
Bosch 0 986 025 190 Starter. Part no. 0-986-025-190. Check specifications, vehicle fitment and references below.

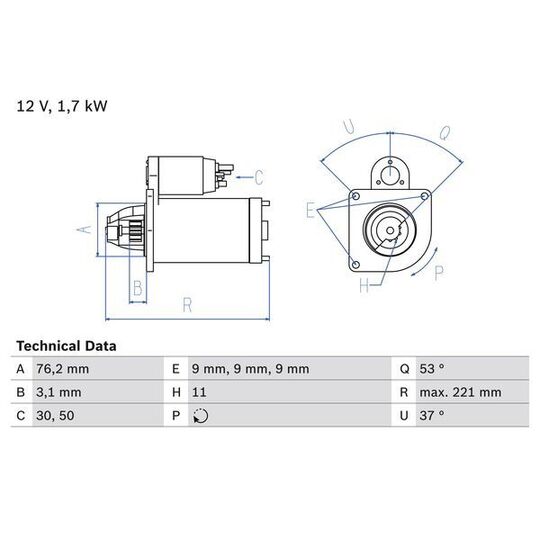

Specifications
Length
221 | mm
Voltage
12 V
Rated Power
1.7 kW
Number of mounting bores
3
Number of threaded holes
0
Number of Teeth
11
Clamp
50
Clamp
30
Flange Diameter
76.2 mm
Rotation Direction
Clockwise rotation
Pinion Rest Position
3.1 mm
Starter Type
Self-supporting
Bore Diameter
9 mm
Bore Diameter 2
9 mm
Bore Ø 3
9 mm
Position/Degree
links
Mounting Angle
37 degrees
Jaw opening angle measurement
53 Degree
Mounting bore angle measurement
37 degree
Trade Numbers
2519
Shipping details
Weight
3.949 Kg
Customs Code
851140
Country of Origin
Hungary
Cross-Reference Numbers
| ALFA ROMEO | 51810308, 52110467 |
|---|---|
| BOSCH | 0 001 138 009, 0 001 138 010, 0 001 174 400, 0 001 174 401, 1 986 S00 830 |
| CASE IH | 51916171 |
| FIAT | 0001Y02778, 51810308, 51916171, 52110467 |
| JEEP | 52110 467 |
| LANCIA | 51810308, 52110467 |
| SEG AUTOMOTIVE | 0001138009, 0001138010, 0001181400, 0001181401 |
